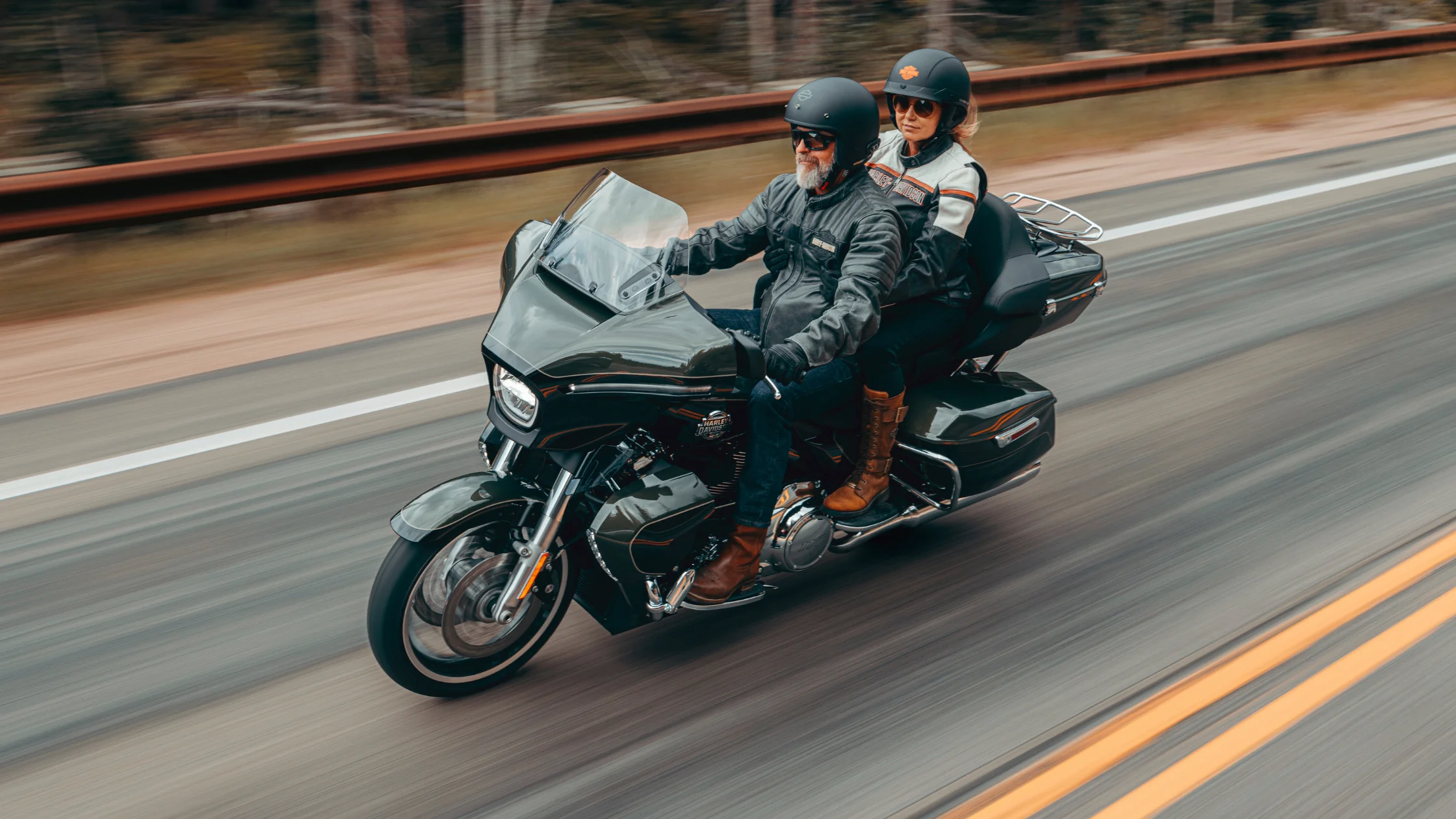

The 2026 Harley-Davidson® Street Glide® Limited is a touring motorcycle designed with a focus on measurable performance, structural durability, and integrated rider systems. The FLHXL platform combines a large-displacement V-twin engine with a reinforced chassis, calibrated suspension components, and a comprehensive infotainment interface. Its configuration supports extended-distance travel while maintaining consistent handling characteristics and mechanical efficiency. The model incorporates a 6-gallon fuel capacity, a 6-speed transmission, and a combination of electronic rider aids intended to maintain stability and control under varying operating conditions.
Engine Configuration and Output Characteristics
The 2026 Harley-Davidson® Street Glide® Limited uses the Milwaukee-Eight® VVT 117 engine with a displacement of 117 cubic inches, equivalent to 1,923 cubic centimeters. The engine features a pushrod-operated overhead valve system with four valves per cylinder and hydraulic self-adjusting lifters. This configuration reduces the need for periodic valve adjustment and maintains consistent valve timing during operation.
The bore measures 4.075 inches, and the stroke extends to 4.5 inches, producing a compression ratio of 10.3:1. The engine uses Electronic Sequential Port Fuel Injection, which supports consistent fuel delivery across a range of engine speeds. A pressurized dry-sump lubrication system circulates oil efficiently, contributing to temperature control and component longevity during extended operation.
Power output is rated at 106 horsepower at 4,600 rpm. Maximum torque is measured at 131 foot-pounds at 3,250 rpm. This torque curve supports steady acceleration and sustained cruising without excessive engine strain. The exhaust system uses a 2-1-2 configuration with tapered mufflers, designed to maintain balanced exhaust flow and support consistent engine performance.
Drivetrain Architecture and Gear Ratios
The drivetrain integrates a chain-driven primary system with a 34 to 46 ratio and a belt-driven final drive with a 32 to 68 ratio. This combination provides efficient power transfer while reducing maintenance compared to fully chain-driven systems.
A mechanically actuated 10-plate wet clutch with assist and slip functionality improves engagement and reduces lever effort. The assist feature supports smoother clutch operation, while the slip function limits rear wheel instability during aggressive downshifting.
The 6-speed Cruise Drive® transmission is configured with gear ratios that support both acceleration and highway efficiency. The first gear ratio is 9.593, followed by 6.65 in second, 4.938 in third, 4.0 in fourth, 3.407 in fifth, and 2.875 in sixth. The higher final gear ratio allows the engine to operate at lower revolutions per minute during highway travel, improving efficiency and reducing mechanical stress.
Frame Construction and Geometry Specifications
The frame is constructed from mild steel using a tubular design with a two-piece stamped and welded backbone. Cast and forged junctions reinforce structural integrity at key stress points. Twin downtubes provide additional rigidity, and the rear frame section is bolt-on with forged fender supports to allow service access and structural stability.
The swingarm uses a two-piece drawn and welded mild steel structure with forged junctions, supporting consistent alignment under load. The chassis geometry includes a rake angle of 26 degrees and a fork angle of 29.25 degrees. Trail measures 6.7 inches, contributing to directional stability. The wheelbase is set at 64 inches, supporting straight-line tracking and predictable handling during extended travel.
Suspension System and Ride Control
The front suspension uses a 49 mm Dual Bending Valve fork system. This design improves damping response by separating compression and rebound forces, reducing harshness over uneven surfaces. The front suspension provides 4.6 inches of travel, allowing the motorcycle to maintain tire contact and stability across varying road conditions.
The rear suspension consists of dual adjustable emulsion shocks with 3 inches of travel. The left shock includes remote preload adjustment, allowing quick changes based on load conditions. The right shock uses threaded preload adjustment, supporting precise tuning. This configuration allows the suspension to accommodate additional weight from passengers or cargo while maintaining ride consistency.
Dimensional Layout and Load Capacity
The 2026 Harley-Davidson® Street Glide® Limited measures 103.3 inches in length, 40.7 inches in width, and 56.7 inches in height. These dimensions support a stable platform for long-distance riding. The seat height is 27.5 inches when laden and 29.1 inches when unladen, allowing accessibility for a range of rider heights.
Ground clearance measures 5.9 inches, supporting adequate lean angles without compromising stability. The motorcycle has a running weight of 893 pounds and a gross vehicle weight rating of 1,360 pounds. The front axle weight rating is 500 pounds, and the rear axle rating is 927 pounds.
Fuel capacity is set at 6 gallons, with a reserve capacity of 1 gallon. Oil capacity with filter is 5 quarts, and the transmission holds 1 quart of fluid. The primary chain case requires 1.1 quarts, and the coolant system holds 0.82 quarts. The luggage system provides a total volume of 5.05 cubic feet, supporting extended travel requirements.
Wheel Configuration and Tire Specifications
The 2026 Harley-Davidson® Street Glide® Limited uses cast aluminum wheels with a 19-inch diameter in the front and an 18-inch diameter in the rear. The front wheel measures 3.5 inches in width, while the rear measures 5 inches.
Tires are part of the Dunlop® Harley-Davidson® Series, designed for touring stability and durability. The front tire specification is 130/60B19 M/C 61H, and the rear tire is 180/55B18 M/C 80H. These dimensions support consistent traction and load distribution.
Lean angles are measured at 31 degrees on both the left and right sides. This allows controlled cornering while maintaining sufficient ground clearance.
Braking System and Control Systems
The braking system includes dual floating rotors in the front with a diameter of 12.6 inches and a thickness of 0.18 inches. These rotors are paired with 4-piston fixed calipers. The rear braking system uses a single rotor with a diameter of 11.8 inches and a thickness of 0.28 inches.
Anti-lock Braking System is included as standard equipment, supporting controlled deceleration under varying surface conditions. Electronic Linked Braking distributes braking force between the front and rear wheels to improve stability.
Additional systems include a traction control system, a drag-torque slip control system, vehicle hold control, and a tire pressure monitoring system. Cornering-enhanced versions of braking and traction control adjust system response based on lean angle, maintaining stability during directional changes.
Electrical System and Integrated Lighting
The electrical system uses a sealed 12-volt battery with a capacity of 28 amp-hours and a rating of 405 cold cranking amps. The charging system is a three-phase unit rated at 58 amps, delivering a maximum output of 754 watts at 13 volts.
The starting system uses a 1.6 kW electric starter with a solenoid shift mechanism, supporting reliable ignition.
Lighting systems use LED technology for the headlamp, tail lamp, and turn signals. LED fog lamps are integrated into the lower fairings, providing additional forward visibility. Digital gauges are integrated into the display, presenting vehicle data in a centralized format.
Infotainment Interface and Connectivity Systems
The 2026 Harley-Davidson® Street Glide® Limited uses the Skyline™ OS infotainment system, displayed on a 12.3-inch full-color TFT screen. The interface integrates navigation, vehicle information, and media functions into a single display.
The audio system includes four speakers, each measuring 6.5 inches, with two located in the fairing and two in the Tour-Pak®. Each channel delivers 50 watts, supporting consistent audio output during operation.
Connectivity features include Bluetooth® integration for phone and media functions, as well as Apple CarPlay® compatibility through wired or wireless connections. USB-C connectivity supports device charging and media access.
The navigation system is embedded and supports traffic and weather data through a Wi-Fi hotspot connection. The system also includes a vehicle information screen displaying air temperature, oil pressure, and engine idle temperature management system data.
