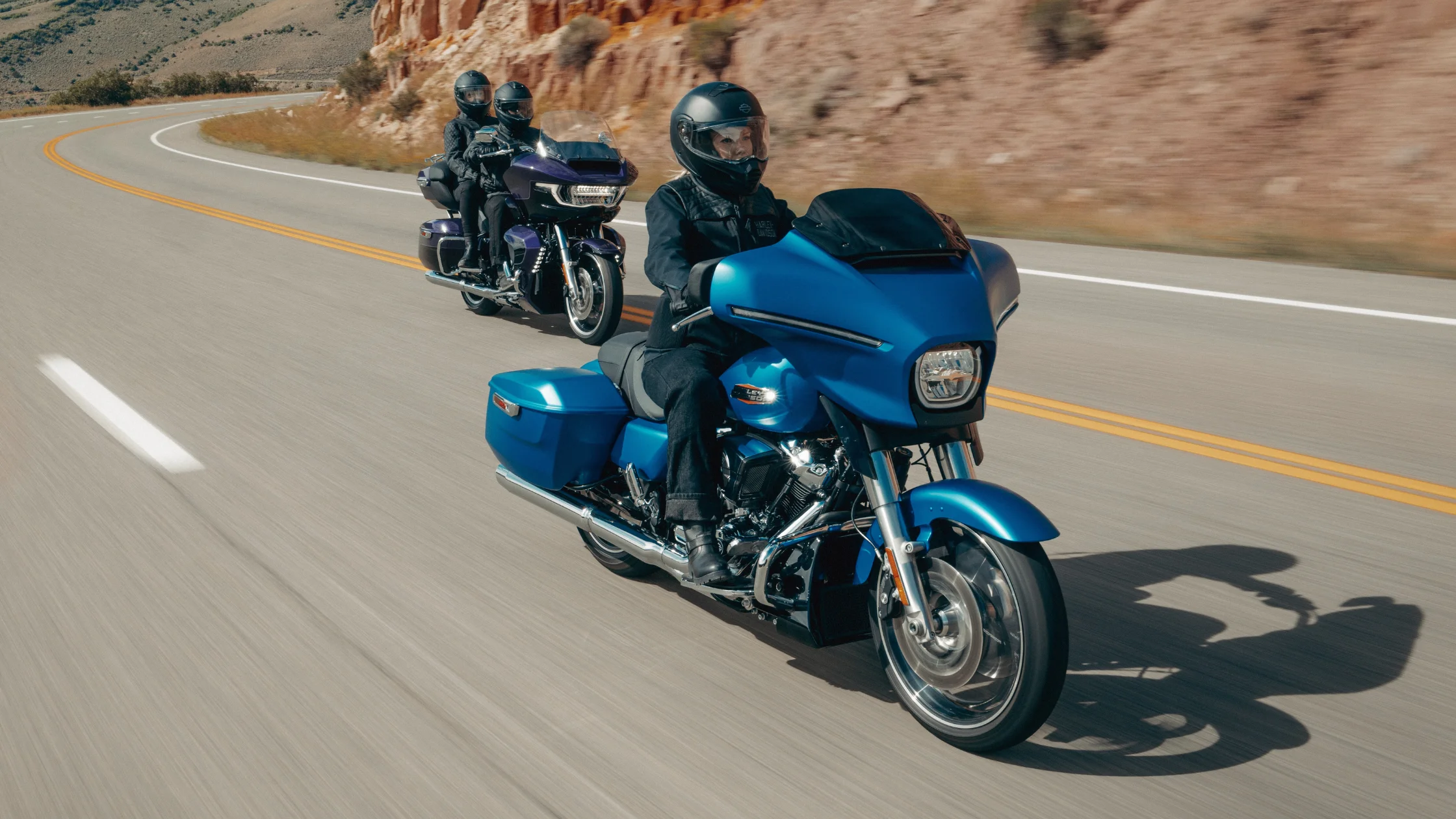

The 2026 Harley-Davidson® Street Glide® is engineered as a touring motorcycle that integrates a large-displacement V-Twin engine, a rigid steel chassis, and a comprehensive set of electronic rider systems. The model is configured to support extended travel, consistent power delivery, and stable handling under varying load conditions. Its measurable specifications define its performance, structural integrity, and operational capability. With a 117 cubic inch engine, a 6-speed transmission, and integrated infotainment and safety systems, the 2026 Harley-Davidson® Street Glide® is designed to maintain efficiency, control, and rider awareness across long-distance riding conditions.
Engine Configuration and Output Characteristics
The 2026 Harley-Davidson® Street Glide® is equipped with the Milwaukee-Eight® 117 engine, a V-Twin configuration with a displacement of 1,923 cc. The engine uses a pushrod-operated overhead valve design with hydraulic, self-adjusting lifters and four valves per cylinder. This configuration supports efficient airflow and reduces the need for periodic valve adjustments.
The bore measures 4.075 inches, and the stroke measures 4.5 inches. These dimensions contribute to a long-stroke design that supports torque-focused performance. The compression ratio is set at 10.3 to 1, allowing for controlled combustion efficiency while maintaining compatibility with recommended high-octane fuel.
The engine produces 130 ft-lb of torque at 3,250 rpm. This torque output supports acceleration and load-carrying capability without requiring high engine speeds. Maximum power output is rated at 105 horsepower at 4,600 rpm, which provides sufficient performance for highway cruising and sustained travel.
Fuel delivery is managed through an Electronic Sequential Port Fuel Injection system. This system adjusts fuel flow based on operating conditions, improving throttle response and combustion consistency. The air intake system includes a washable fiberglass air cleaner, which supports long-term use and serviceability.
The lubrication system is a pressurized dry-sump design. This configuration separates oil storage from the crankcase, ensuring consistent lubrication during extended operation and under varying lean angles. The exhaust system is a 2-1-2 dual configuration with tapered mufflers, which contributes to balanced exhaust flow and thermal management.
Transmission, Clutch System, and Gear Ratios
The drivetrain of the 2026 Harley-Davidson® Street Glide® is configured to deliver controlled power transfer and durability. The primary drive uses a chain with a 34 to 46 ratio, while the final drive uses a belt with a 32 to 68 ratio. This combination balances mechanical efficiency with reduced maintenance requirements.
The clutch system is a mechanically actuated 10-plate wet clutch with Assist and Slip functionality. The Assist feature reduces clutch lever effort, while the Slip function helps manage engine braking during downshifts, reducing the likelihood of rear wheel instability.
The 2026 Harley-Davidson® Street Glide® is equipped with a 6-Speed Cruise Drive® transmission. Gear ratios are spaced to support both low-speed maneuvering and highway operation. First gear has an overall ratio of 9.593, which provides strong initial acceleration. Second gear is 6.65, third is 4.938, fourth is 4.0, fifth is 3.407, and sixth gear is 2.875. The higher gear ratios allow the engine to operate at lower rpm during cruising, which contributes to efficiency and reduced mechanical stress.
Frame Construction and Structural Design
The frame of the 2026 Harley-Davidson® Street Glide® is constructed from mild steel and uses a tubular design. It incorporates a two-piece stamped and welded backbone with cast and forged junctions. Twin down-tubes provide structural reinforcement, and the rear frame section is bolt-on, which supports serviceability and component replacement.
The swingarm is also constructed from mild steel and features a two-piece drawn and welded design with forged junctions. This structure contributes to rigidity while maintaining controlled flex characteristics for handling stability.
Steering geometry includes a rake angle of 26 degrees and a fork angle of 29.25 degrees. The trail measurement is 6.7 inches, and the wheelbase is 64 inches. These measurements are configured to provide a balance between straight-line stability and controlled steering response, particularly at higher speeds.
Suspension Systems and Ride Dynamics
The front suspension uses a 49 mm Dual Bending Valve fork. This system is designed to manage damping forces by separating compression and rebound functions, which improves ride quality over uneven surfaces.
The rear suspension consists of dual outboard emulsion shocks with 3 inches of travel. These shocks include preload adjustability, allowing riders to compensate for additional weight from passengers or cargo. Suspension travel is measured at 4.6 inches in the front and 3 inches in the rear.
This suspension configuration supports consistent tire contact with the road surface and maintains stability during acceleration, braking, and cornering. The system is tuned to balance comfort with handling precision for extended riding durations.
Dimensions, Weight Distribution, and Capacity
The 2026 Harley-Davidson® Street Glide® has a total length of 94.9 inches, a width of 38.4 inches, and a height of 53.1 inches. The seat height when laden is 26.4 inches, which supports rider accessibility and stability during stops. The unladen seat height is 28.1 inches.
Ground clearance is measured at 5.5 inches, which supports moderate lean angles while maintaining undercarriage protection. The motorcycle has a lean angle of 32 degrees on both the left and right sides.
The weight of the 2026 Harley-Davidson® Street Glide® is 774 pounds as shipped and 811 pounds in running order. The gross vehicle weight rating is 1,360 pounds. The front axle weight rating is 500 pounds, and the rear axle weight rating is 927 pounds. These values define the load-carrying capacity and structural limits of the motorcycle.
Fuel capacity is 6 gallons, with a reserve capacity of approximately 1 gallon. Oil capacity is 5 quarts with a filter. Additional fluid capacities include 1 quart for the transmission, 1.1 quarts for the primary chain case, and 0.82 quarts for the coolant system.
The 2026 Harley-Davidson® Street Glide® provides a luggage capacity of 2.42 cubic feet, which supports storage requirements for extended travel.
Wheels, Tires, and Braking Components
The 2026 Harley-Davidson® Street Glide® uses cast aluminum wheels with a 19-inch diameter in the front and an 18-inch diameter in the rear. The front wheel has a width of 3.5 inches, and the rear wheel has a width of 5 inches.
Tire specifications include a 130/60 B19 front tire and a 180/55 B18 rear tire. These tires are part of the Dunlop® Harley-Davidson® Series and are designed for touring applications, providing a balance of grip, wear resistance, and stability.
The braking system uses dual floating rotors in the front with a diameter of 12.6 inches and a thickness of 0.18 inches. These are paired with 4-piston fixed calipers. The rear brake uses a fixed rotor with a diameter of 11.8 inches and a thickness of 0.28 inches.
Anti-lock Braking System is standard and helps prevent wheel lockup during braking. The system maintains control during deceleration on varying road surfaces.
Electrical System and Integrated Components
The electrical system includes a sealed, maintenance-free 12-volt battery with a capacity of 28 amp-hours and a rating of 405 cold cranking amps. This battery supports consistent starting performance and electrical reliability.
Charging is managed by a three-phase 58-amp system capable of delivering up to 754 watts of power at 13 volts. This output supports onboard electronics and accessory usage.
The starting system uses a 1.6 kW electric starter motor with solenoid engagement. Lighting components are fully LED, including the headlamp, tail and stop lights, and turn signals. LED lighting improves visibility and reduces power consumption.
The 2026 Harley-Davidson® Street Glide® also includes a USB-C power outlet rated at 15 watts, located within the media storage compartment. This supports charging of compatible devices during operation.
Infotainment System and Connectivity Features
The 2026 Harley-Davidson® Street Glide® integrates the Skyline™ OS infotainment system. The system is displayed on a 12.3-inch full-color TFT screen, which consolidates vehicle data and media controls.
Audio output is rated at 50 watts per channel and is delivered through two 5.25-inch speakers mounted in the fairing. The system supports AM and FM radio, as well as MP3 playback through USB connection.
Bluetooth® connectivity is standard for phone and media integration. The system supports hands-free communication and audio streaming. Apple CarPlay® compatibility is available through both wireless and wired connections, allowing integration with supported smartphones.
Navigation functionality is embedded and includes traffic and weather updates through a Wi-Fi hotspot connection, where applicable. The system also includes a vehicle information display that provides data such as air temperature and oil pressure.
Rider Safety Systems and Control Technologies
The 2026 Harley-Davidson® Street Glide® incorporates multiple electronic systems designed to assist with rider control and stability. Anti-lock Braking System is included as a standard feature. Electronic Linked Braking distributes braking force between the front and rear wheels to improve stopping efficiency.
The Traction Control System monitors wheel speed and adjusts power delivery to reduce wheel slip. The Drag-Torque Slip Control System manages engine braking to prevent rear wheel lock during deceleration.
Vehicle Hold Control helps maintain the motorcycle in a stationary position on inclines by holding brake pressure after the rider releases the brake lever.
The 2026 Harley-Davidson® Street Glide® also includes cornering-enhanced systems that adjust performance based on lean angle. These include the Cornering Enhanced Anti-lock Braking System, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control System, and Cornering Drag-Torque Slip Control System.
A Tire Pressure Monitoring System provides continuous feedback on tire pressure, supporting maintenance and safety awareness during operation.
