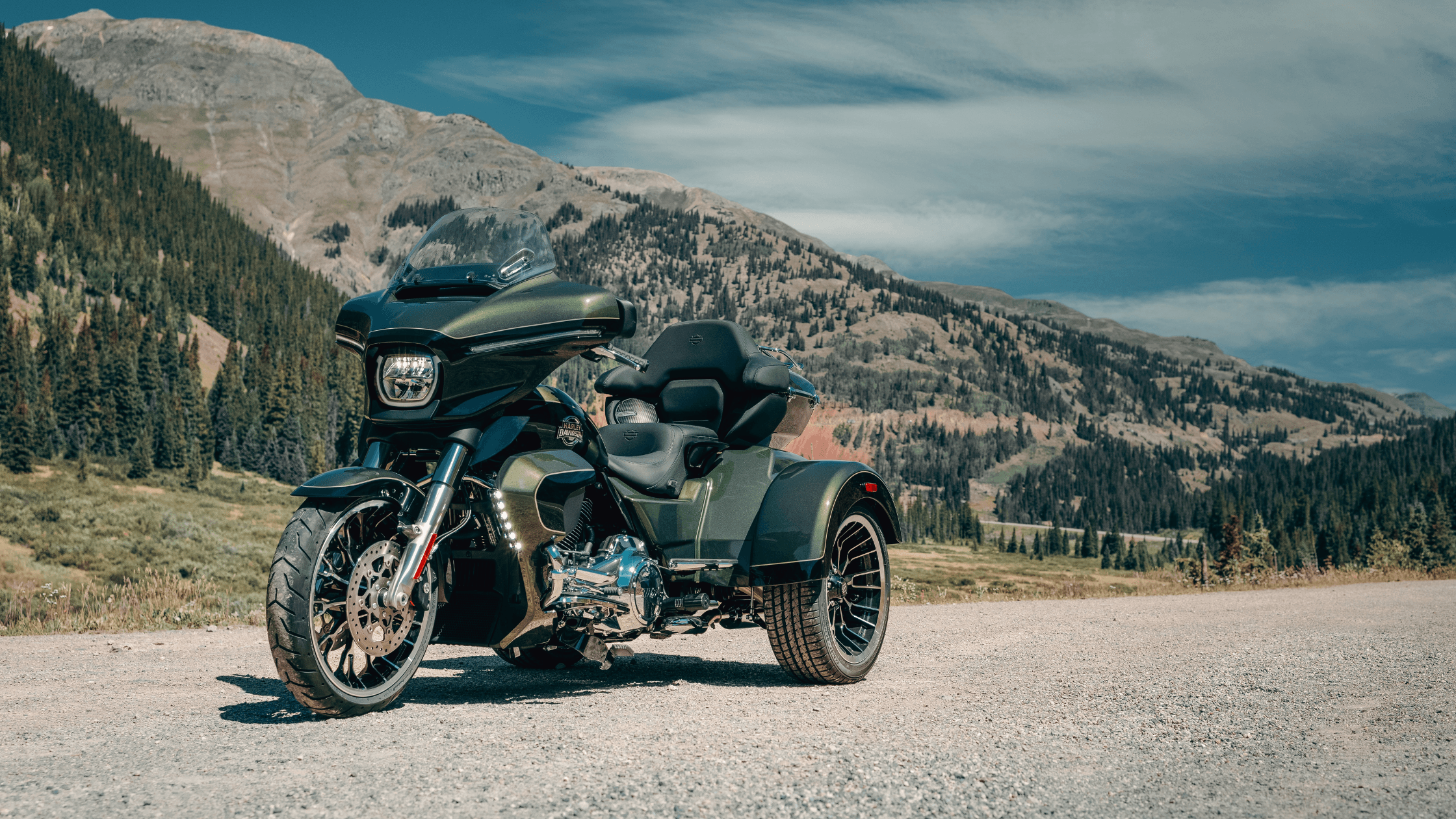

The 2026 Harley-Davidson® Street Glide® 3 Limited is a three-wheel touring platform designed with a focus on measurable performance, structural stability, and integrated technology. This model combines a large-displacement engine, a mechanically efficient drivetrain, and a chassis configured to manage long-distance travel with increased load capacity. Technical design choices emphasize balance, controlled handling, and functional integration of digital systems. The vehicle uses standardized measurement specifications covering dimensions, performance output, and electrical architecture, allowing riders and technicians to evaluate the platform through objective data. The following sections present a detailed examination of engine operation, drivetrain engineering, chassis design, technology integration, and safety systems based exclusively on verified specifications.
Engine Performance and Mechanical Configuration
The 2026 Harley-Davidson® Street Glide® 3 Limited uses the Milwaukee-Eight® VVT 117 engine, a large-displacement V-twin configured for steady torque delivery across a broad operating range. The engine displacement measures 117 cubic inches or 1,923 cubic centimeters, supported by a bore of 4.075 inches and a stroke of 4.5 inches. This long-stroke configuration contributes to controlled power delivery and sustained pulling capability, which supports touring applications. The compression ratio is rated at 10.3:1, balancing combustion efficiency and operational reliability.
Valve operation uses a pushrod design with overhead valves and hydraulic self-adjusting lifters. Four valves per cylinder provide improved airflow management compared with simpler two-valve systems. Hydraulic lifters reduce routine maintenance adjustments by automatically compensating for valve clearance changes over time. Fuel delivery comes through electronic sequential port fuel injection, providing precise fuel metering across multiple engine conditions. A synthetic felt washable air cleaner supports airflow while allowing cleaning rather than frequent replacement.
Engine output specifications include approximately 129 foot-pounds of torque measured at 3,250 rpm and a power rating of 105 horsepower at 4,600 rpm. These values indicate a power curve centered on mid-range usability rather than peak RPM performance. Lubrication is handled through a pressurized dry-sump system that separates oil storage from the crankcase, supporting thermal stability and oil circulation during extended operation. Exhaust gases exit through a 2-1-2 dual exhaust system designed to maintain balanced back pressure and consistent flow characteristics.
Drivetrain and Transmission Engineering
The drivetrain combines chain and belt systems to achieve durability and smooth operation. The primary drive uses a chain with a 34/46 ratio, transferring rotational force from the crankshaft to the clutch assembly. Final drive power delivery is handled by a belt system with a 30/70 ratio. The belt design reduces maintenance frequency and improves noise control compared with traditional all-chain configurations.
Clutch function is managed through a mechanically actuated 10-plate wet clutch equipped with Assist and Slip characteristics. The assist feature reduces clutch lever effort under load, while the slip function minimizes rear wheel destabilization during aggressive downshifts. These features help maintain smooth transitions between gears and reduce mechanical shock through the drivetrain.
The transmission uses a 6-speed Cruise Drive® configuration that includes reverse functionality. Gear ratios range from a short first gear for controlled launches to a taller sixth gear intended for stable cruising. The overall ratios are 10.534 in first gear, 7.302 in second, 5.423 in third, 4.392 in fourth, 3.742 in fifth, and 3.0 in sixth. Electric reverse operation is controlled from the handlebars, assisting with low-speed maneuvering and parking in restricted spaces. The result is a drivetrain designed around controlled torque distribution and predictable response under varying riding conditions.
Dimensions, Weight, and Structural Layout
The chassis dimensions support touring stability and load-carrying capability. Total length measures 105.7 inches, while overall width measures 57.3 inches and overall height reaches 56.5 inches. The wheelbase extends to 67.7 inches, creating a longer footprint that improves directional stability during highway travel. Steering geometry includes a rake angle of 26 degrees and a fork angle of 32 degrees, with a trail measurement of 3.8 inches. These values contribute to stable steering input and controlled directional response.
Seat height is rated at 27.3 inches in loaded conditions and 28.9 inches unloaded. Ground clearance measures 5.1 inches, providing sufficient clearance for standard road use while maintaining a low center of gravity. Fuel capacity reaches 6 gallons with a 1-gallon reserve warning level. Fluid capacities include 5 quarts of oil with filter, 1.22 quarts for transmission lubrication, and 1.1 quarts for the primary chain case.
Weight specifications reflect the size and structure of the platform. The as-shipped weight is listed at 1,213 pounds and increases to approximately 1,250 pounds in running order. The gross vehicle weight rating is 1,700 pounds, with axle load distribution specifying 511 pounds at the front and 1,189 pounds at the rear. Luggage volume totals 7.1 cubic feet, supporting long-distance travel without external storage modifications.
Chassis Construction and Suspension Setup
The frame construction of the 2026 Harley-Davidson® Street Glide® 3 Limited uses mild steel with a square-section backbone and twin downtubes. This arrangement creates structural rigidity necessary for supporting a touring trike configuration. The swingarm is built using permanent mold cast aluminum, reducing weight while preserving stiffness. Front suspension relies on a 49 mm dual bending valve fork designed to manage road irregularities while maintaining consistent steering feedback.
Rear suspension uses hand-adjustable emulsion shocks. Adjustment capability allows riders or technicians to compensate for payload changes, including passenger weight and luggage. Suspension travel measures 4.6 inches at the front and 3.5 inches at the rear. These measurements support controlled ride movement without excessive chassis pitch.
Wheel construction includes gloss black and machined cast aluminum 10-spoke designs. The front wheel measures 19 inches in diameter and 3.5 inches in width, while the rear wheel measures 18 inches in diameter and 7 inches in width. Tire specifications include a Dunlop® Harley-Davidson® series bias blackwall front tire and radial rear tire, reflecting the differing performance requirements between steering and load-bearing positions.
Braking Systems and Integrated Control Technology
Braking performance of the 2026 Harley-Davidson® Street Glide® 3 Limited is supported by dual floating rotors at the front and a fixed rotor at the rear. Front calipers are 32 mm four-piston fixed units, providing balanced braking pressure. The rear braking assembly uses a floating 36 mm piston design integrated with a park brake function. Both front and rear rotors measure 11.8 inches in diameter, ensuring consistent braking surface area.
Anti-Lock Braking System functionality is included as standard equipment. Electronic Linked Braking coordinates brake force distribution between wheels, helping maintain predictable deceleration. Additional systems include Traction Control and Drag-torque Slip Control, both designed to regulate power transfer during acceleration and deceleration.
Cornering enhancement technology further manages braking and traction when the vehicle changes direction. Cornering-enhanced ABS and linked braking functions adjust intervention based on vehicle position and dynamic input. Cornering traction control and cornering drag-torque slip control contribute to stability during transitional movement. Tire pressure monitoring is also included, providing continuous pressure awareness to support consistent handling characteristics.
Electrical Architecture and Technology Integration
Electrical performance is built around a sealed 12-volt maintenance-free battery rated at 28 amp-hours and 405 cold cranking amps. Charging is handled through a three-phase 48-amp system capable of supplying approximately 600 watts at 13 volts and up to 625 watts maximum output. Starting is accomplished by a 1.6 kW electric system using a solenoid shift starter motor.
Lighting systems use LED technology throughout the vehicle, including headlamps, tail and stop lamps, front signals, rear signals, and auxiliary fog lamps integrated into the lower fairings. Instrumentation consists of digital gauges integrated within the display system, reducing the number of separate analog components.
A 15-watt USB-C power outlet located in the media storage area supports accessory charging. Navigation capability is integrated into the platform, providing embedded route guidance. The electrical architecture supports advanced infotainment functionality while maintaining sufficient charging capacity for accessories and onboard electronics.
Infotainment and Digital Interface Systems
The infotainment system uses Skyline™ OS displayed through a 12.3-inch full-color TFT screen. This interface consolidates vehicle information, navigation, and media controls into a single digital environment. Audio output provides 50 watts per channel across four speakers. Speaker placement includes two 6.5-inch fairing speakers and two 6.5-inch Tour-Pak® speakers, distributing audio evenly throughout the rider and passenger zones.
Connectivity includes Bluetooth® support for phone and media functions, as well as headset pairing capability. USB-C and media transfer protocol compatibility allow smartphone integration through appropriate adapters. Apple CarPlay® support is available through wireless or wired connection, expanding navigation and media options.
Vehicle information screens display operational data such as air temperature, oil pressure, and engine management indicators. Hands-free phone integration allows audio control without direct device interaction, supporting safer operation. The infotainment system is designed to centralize operational data while maintaining clarity and ease of use during travel.
Fuel Efficiency and Operational Range
Fuel economy for the 2026 Harley-Davidson® Street Glide® 3 Limited is estimated at approximately 39 miles per gallon under city and highway combined evaluation. This figure, paired with the 6-gallon fuel capacity, supports extended riding intervals between refueling stops. Engine calibration and gearing contribute to sustained efficiency during steady-speed touring conditions. The balance between torque-focused performance and fuel usage supports practical distance riding without sacrificing load capability.
