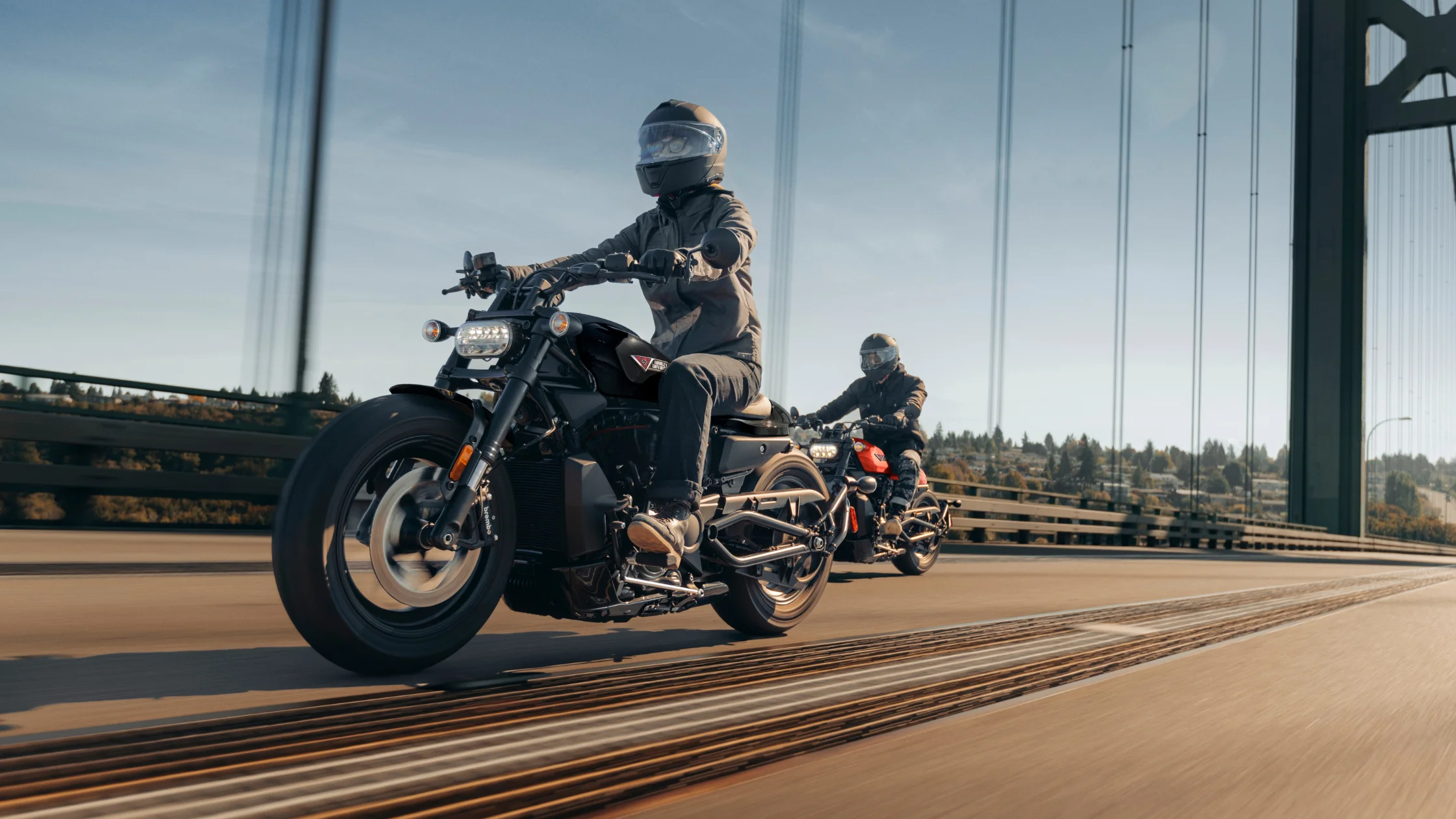

The 2026 Harley-Davidson® Sportster® S is a performance-focused motorcycle that integrates a high-output liquid-cooled engine, a rigid structural frame, and electronically managed rider systems. The model uses a compact configuration that supports controlled handling and stable geometry while maintaining measurable power output. Its specifications show a clear emphasis on performance efficiency, structural rigidity, and rider interface functionality. The motorcycle combines a 1,252 cc V-twin engine with a six-speed transmission, modern suspension components, and a full set of electronic safety features.
High-Output Revolution® Max 1250T Engine Configuration
The 2026 Harley-Davidson® Sportster® S uses the Revolution® Max 1250T engine, which is a liquid-cooled V-twin with a displacement of 76.4 cubic inches or 1,252 cc. The engine uses a bore of 4.134 inches and a stroke of 2.846 inches, combined with a compression ratio of 12.0:1. This configuration supports a balance between high engine speed operation and consistent torque output. The engine uses dual overhead camshafts with chain-driven operation and hydraulic self-adjusting lifters. Each cylinder contains four valves, and both intake and exhaust sides include variable valve timing. This setup improves airflow control and combustion efficiency across different engine speeds.
Fuel delivery is handled through Electronic Sequential Port Fuel Injection, which ensures accurate metering of fuel based on operating conditions. The intake system uses a downdraft configuration with tuned velocity stacks and a washable air filter element. Exhaust gases are routed through a 2-into-1-into-2 exhaust system with a catalyst integrated into the muffler. The lubrication system is a semi-dry sump design, which supports consistent oil circulation during varied riding conditions.
The engine produces 121 horsepower at 7,500 rpm and 93 ft-lb of torque at 6,000 rpm. These figures indicate strong acceleration capability and sustained output across midrange and upper rpm levels. The design prioritizes both peak performance and continuous operation stability through its cooling and lubrication systems.
Transmission and Drivetrain Specifications
The drivetrain of the 2026 Harley-Davidson® Sportster® S includes a six-speed transmission paired with a gear-driven primary system. The primary drive ratio is 49/89, while the final drive uses a belt with a ratio of 34/80. This configuration provides efficient power transfer with reduced maintenance compared to chain-driven systems.
The clutch system is a mechanical eight-plate wet clutch with assist and slip functionality, rated at 1090 newtons. This design reduces lever effort while maintaining consistent engagement and controlled deceleration during downshifts. The assist feature helps manage clutch pressure, while the slip function reduces rear wheel instability under aggressive gear changes.
The overall gear ratios are 12.21 in first gear, 9.022 in second, 6.994 in third, 5.641 in fourth, 4.731 in fifth, and 4.131 in sixth. These ratios provide a wide spread that supports both acceleration and efficient cruising. The drivetrain components are designed to handle the torque output of the engine without compromising smoothness or durability.
Structural Frame and Chassis Design
The motorcycle uses a stressed-member trellis frame constructed from high-strength low-alloy steel. The frame incorporates stamped, cast, and forged junctions that are MIG-welded. An aluminum-forged mid-structure is integrated into the frame design, which contributes to reduced weight and improved rigidity. This construction allows the engine to function as a structural component, reducing overall mass while maintaining strength.
The swingarm is also constructed from high-strength low-alloy steel and uses tubular sections combined with a stamped cross-member. Forged axle junctions provide durability and alignment stability. The design of the swingarm supports consistent rear wheel tracking under acceleration and braking loads.
The chassis geometry includes a rake angle of 30 degrees, a fork angle of 28 degrees, and a trail measurement of 5.8 inches. The wheelbase is 59.8 inches. These measurements contribute to straight-line stability and predictable steering response. The motorcycle has an overall length of 89.4 inches, a width of 33.1 inches, and a height of 42.7 inches. The laden seat height is 28.9 inches, while the unladen seat height is 30.1 inches. Static ground clearance is measured at 3.5 inches.
Suspension System with Full Adjustability
The front suspension uses a 43 mm inverted fork that provides adjustability for compression damping, rebound damping, and spring preload. Aluminum triple clamps support the fork assembly and contribute to reduced unsprung weight. The inverted fork design improves rigidity and front-end feedback during braking and cornering.
The rear suspension uses a linkage-mounted monoshock with a piggyback reservoir. It includes adjustable compression damping, rebound damping, and hydraulic spring preload. This configuration allows the rider to modify suspension behavior based on load conditions and riding preferences.
Front suspension travel is 3.6 inches, and rear suspension travel is 3.2 inches. These measurements indicate a performance-oriented setup that prioritizes handling control and road feedback. The adjustability of both front and rear suspension systems provides flexibility in tuning ride characteristics.
Wheel and Tire Configuration
The 2026 Harley-Davidson® Sportster® S uses aluminum cast wheels with a satin black finish. The front wheel has a diameter of 17 inches and a width of 4.5 inches, while the rear wheel has a diameter of 16 inches and a width of 5 inches. This staggered configuration supports both steering precision and rear traction.
The motorcycle is equipped with Dunlop® Harley-Davidson® Series radial tires. The front tire specification is 160/70R17 with a load index of 73V, and the rear tire specification is 180/70R16 with a load index of 77V. These tires provide a combination of grip and durability suitable for performance riding conditions.
Braking System and Control
The braking system includes a front radially mounted monoblock four-piston caliper paired with a single floating rotor. The front rotor has a diameter of 12.6 inches and a thickness of 0.2 inches. The rear braking system uses a floating single-piston caliper with a rotor diameter of 10.2 inches and a thickness of 0.2 inches.
An Anti-lock Braking System is included as standard equipment. This system prevents wheel lock during braking and improves control on low-traction surfaces. The braking setup is designed to provide consistent stopping power while maintaining manageable weight and mechanical simplicity.
Performance Metrics and Efficiency
The motorcycle delivers a peak torque output of 93 ft-lb at 6,000 rpm and a maximum power output of 121 horsepower at 7,500 rpm. Torque measurement follows the J1349 standard, while lean angle testing follows the J1168 method. The 2026 Harley-Davidson® Sportster® S achieves a lean angle of 35 degrees on both the left and right sides, which supports cornering capability.
Fuel capacity is 3.1 gallons, with a reserve capacity of 0.8 gallons indicated by a warning light. The motorcycle has an estimated fuel economy of 49 miles per gallon. Oil capacity with filter is 4.75 quarts, and coolant capacity is 2.32 quarts. These figures indicate efficient fluid management for both engine lubrication and temperature control.
The weight of the motorcycle is 487 pounds as shipped and 502 pounds in running order. The gross vehicle weight rating is 922 pounds, with a front axle rating of 359 pounds and a rear axle rating of 595 pounds. These values define load limits and structural capacity.
Electrical System and Rider Interface Technology
The electrical system includes a sealed maintenance-free absorbed glass mat battery rated at 12 volts and 12 amp-hours, with 225 cold cranking amps at zero degrees Fahrenheit. The charging system is a three-phase unit rated at 45 amps. It produces 300 watts at 13 volts at 1200 rpm and reaches a maximum output of 585 watts at 2250 rpm.
The starting system uses a 0.9-kilowatt electric starter with direct drive engagement. Lighting components include a full LED headlamp with both low and high beam functionality, LED rear lighting, and LED bullet turn signals for both front and rear positions. These components provide visibility and durability with reduced energy consumption.
The rider interface includes a 4-inch color TFT display with a 102 mm viewable area. The display shows speed, gear position, odometer readings, fuel level, clock, trip information, ambient temperature, and tachometer data. It also includes alerts for low temperature, side stand position, and tip-over detection. Cruise indication and range estimation are also displayed.
Bluetooth® functionality allows phone pairing for calls, music, and navigation through a dedicated application. The system supports hands-free mobile phone use and Bluetooth® media functions. USB-C charging is available with output levels supporting device charging and instrument updates. Vehicle information available through the interface includes tire pressure monitoring, engine temperature, battery voltage, and ambient air temperature.
Integrated Rider Safety Systems
The 2026 Harley-Davidson® Sportster® S includes a range of rider safety systems designed to manage traction and braking conditions. Standard systems include Anti-lock Braking System, Traction Control System, Drag-torque Slip Control System, Tire Pressure Monitoring System, and Wheel Lift Mitigation. These systems help maintain stability during acceleration, deceleration, and variable road conditions.
Cornering-specific systems are also included. These systems adjust performance based on lean angle and include Cornering Enhanced Anti-lock Braking System, Cornering Enhanced Traction Control System, Cornering Drag-Torque Slip Control System, and Enhanced Lift Mitigation. These features provide additional control when the motorcycle is leaned during cornering.
