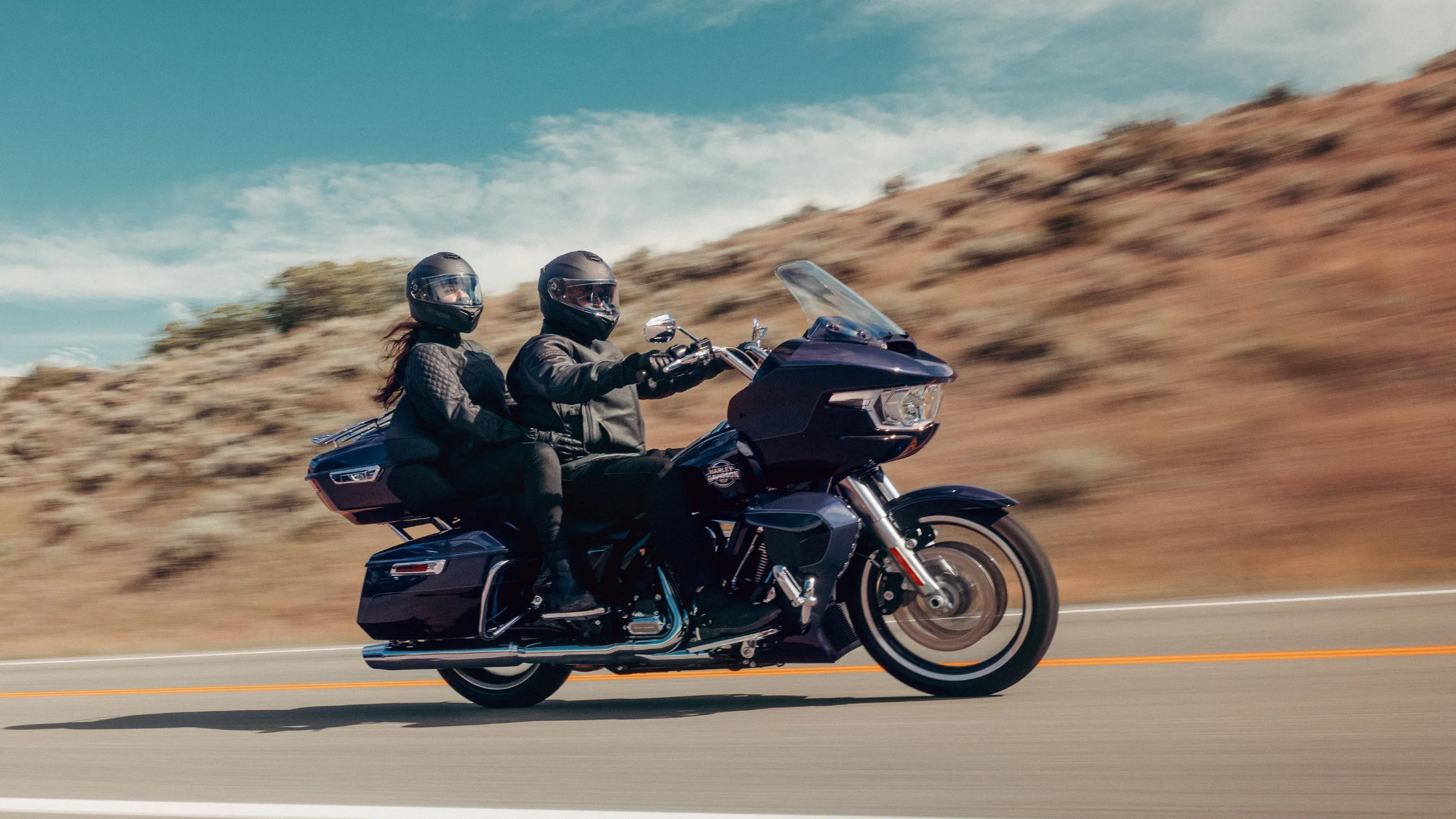

The 2026 Harley-Davidson® Road Glide® Limited is engineered as a full-scale touring motorcycle with a focus on structural precision, controlled power delivery, and integrated rider systems. Its configuration reflects a combination of large-displacement engine output, long-wheelbase stability, and electronic integration designed for extended travel. The model incorporates a frame-mounted fairing, advanced infotainment, and a complete suite of rider safety systems. Each component is specified to support consistent performance under load, including passenger and cargo conditions. The overall design prioritizes measurable outputs such as torque delivery, braking efficiency, and system integration rather than stylistic emphasis.
Engine Configuration and Output Characteristics
The 2026 Harley-Davidson® Road Glide® Limited is powered by the Milwaukee-Eight® VVT 117 engine. This engine has a displacement of 117 cubic inches, equivalent to 1,923 cubic centimeters. The design incorporates pushrod-operated overhead valves with hydraulic, self-adjusting lifters and four valves per cylinder. Variable valve timing is included to regulate valve operation across different engine speeds, supporting both low-speed torque and sustained output at higher RPM levels.
The bore measures 4.075 inches, while the stroke measures 4.5 inches. This configuration contributes to a compression ratio of 10.3 to 1. Fuel delivery is managed through Electronic Sequential Port Fuel Injection, which provides controlled fuel distribution for consistent combustion. The lubrication system uses a pressurized dry-sump design, ensuring stable oil circulation during extended operation.
The engine produces 131 foot-pounds of torque at 3,250 RPM. Maximum power output is rated at 106 horsepower at 4,600 RPM. These figures indicate a focus on mid-range torque, which is essential for acceleration under load and highway passing capability. The exhaust system uses a 2-1-2 dual configuration with tapered mufflers, designed to maintain balanced exhaust flow and reduce restriction. The air intake system includes a fiberglass, washable air cleaner, supporting long-term serviceability.
Transmission and Drivetrain Mechanics
The drivetrain is configured to deliver power efficiently from the engine to the rear wheel. A 6-speed Cruise Drive® transmission is used to manage gear distribution. This transmission is designed to reduce engine speed during highway travel while maintaining sufficient torque output for acceleration.
The primary drive system uses a chain with a 34 to 46 ratio. The final drive uses a belt system with a 32 to 68 ratio. This combination provides a balance between mechanical durability and reduced maintenance requirements. The clutch is a mechanically actuated 10-plate wet design with Assist and Slip functionality. This feature reduces the amount of force required at the lever and limits rear wheel instability during downshifting.
Gear ratios are structured to provide progressive power delivery. The first gear ratio is 9.593, followed by 6.65 in second gear, 4.938 in third gear, 4.0 in fourth gear, 3.407 in fifth gear, and 2.875 in sixth gear. These ratios allow for controlled acceleration and efficient cruising across a range of speeds.
Frame Geometry and Structural Composition
The structural framework of the 2026 Harley-Davidson® Road Glide® Limited uses a mild steel tubular frame. The frame includes a two-piece stamped and welded backbone, with cast and forged junctions that enhance rigidity. Twin downtubes provide additional structural support, while the rear frame is bolt-on, allowing for service accessibility and modularity.
The swingarm is constructed from mild steel using a two-piece drawn and welded design. Forged junctions and MIG welding are used to maintain strength and alignment. The geometry of the motorcycle includes a rake angle of 26 degrees and a fork angle of 29.25 degrees. The trail measurement is 6.8 inches, which contributes to directional stability.
The wheelbase measures 64 inches, supporting straight-line stability during highway operation. The dimensions of the 2026 Harley-Davidson® Road Glide® Limited include an overall length of 103.1 inches, a width of 40.7 inches, and a height of 57 inches. Ground clearance is measured at 5.1 inches. These specifications define the motorcycle’s physical footprint and influence handling characteristics.
Suspension System and Load Adaptation
The front suspension uses a 49 mm Dual Bending Valve fork. This system is designed to manage compression and rebound damping more effectively than conventional fork designs. The front suspension travel is 4.6 inches, allowing for absorption of road irregularities.
The rear suspension consists of dual adjustable emulsion shocks. The left shock includes remote preload adjustment, while the right shock uses threaded preload adjustment. Rear suspension travel is measured at 3 inches. This configuration allows the rider to adjust preload settings based on passenger weight or luggage requirements.
The suspension system is designed to maintain stability under varying load conditions. It supports consistent ride height and handling response when carrying additional weight. The system also contributes to rider comfort by reducing the transfer of road vibrations.
Wheel and Tire Specifications
The 2026 Harley-Davidson® Road Glide® Limited uses cast aluminum wheels, with a 19-inch front wheel and an 18-inch rear wheel. The front wheel has a width of 3.5 inches, while the rear wheel measures 5 inches in width. Tire specifications include a 130/60B19 front tire and a 180/55B18 rear tire. These tires are part of the Dunlop® Harley-Davidson® Series and are constructed as bias blackwall designs.
The wheel and tire combination is selected to provide a balance between stability and traction. The larger front wheel contributes to directional control, while the wider rear tire supports load-bearing capacity and grip.
Braking System and Control Mechanisms
The braking system includes dual front rotors and a single rear rotor. The front rotors measure 12.6 inches in diameter and use dual floating construction. The rear rotor measures 11.8 inches and uses a fixed design. Front calipers are 4-piston fixed units, while the rear uses a single caliper.
Anti-lock Braking System is included as standard equipment. This system prevents wheel lock during braking by modulating brake pressure. Electronic Linked Braking is also included, distributing braking force between the front and rear wheels.
Cornering Enhanced ABS and Cornering Electronic Linked Braking adjust braking performance based on the motorcycle’s lean angle. These systems are designed to maintain traction and control during cornering maneuvers. The braking system is configured to provide consistent stopping performance under varying conditions.
Electrical System and Lighting Integration
The electrical system includes a sealed, maintenance-free 12-volt battery with a capacity of 28 amp-hours and 405 cold-cranking amps. Charging is handled by a three-phase, 58-amp system, capable of delivering up to 754 watts of power.
The starting system uses a 1.6 kW electric starter with solenoid engagement. Lighting components are fully LED-based. This includes the headlamp, tail and brake lights, front signal lights, and rear turn signals. LED fog lamps are integrated into the lower fairings to improve visibility.
The system also includes a USB-C power outlet rated at 15 watts in the media storage compartment. An additional power outlet is located in the Tour-Pak®. These features support device charging during travel.
Infotainment System and Connectivity Features
The 2026 Harley-Davidson® Road Glide® Limited is equipped with the Skyline™ OS infotainment system. The system is displayed on a 12.3-inch full-color TFT screen. This interface integrates navigation, media, and vehicle information into a single display.
The audio system includes four speakers, each measuring 6.5 inches. Two speakers are located in the fairing, and two are positioned in the Tour-Pak®. Each channel is rated at 50 watts, providing consistent audio output.
The system supports AM and FM radio. It also supports USB-based media playback, including MP3 files. Bluetooth® connectivity allows for hands-free phone operation and media streaming. Apple CarPlay® compatibility is available in both wireless and wired formats.
Navigation is embedded within the system and includes traffic and weather data through a Wi-Fi hotspot connection. The vehicle information screen provides data such as air temperature, oil pressure, and engine idle temperature management system status.
Rider Safety Systems and Stability Controls
The 2026 Harley-Davidson® Road Glide® Limited incorporates a range of rider safety systems designed to improve control and reduce instability. The Traction Control System monitors wheel speed and adjusts power delivery to prevent loss of traction. The Drag-Torque Slip Control System reduces the effect of engine braking on the rear wheel.
Vehicle Hold Control assists the rider when stopped on an incline by maintaining brake pressure. The Tire Pressure Monitoring System provides real-time pressure data for both tires, allowing for proper maintenance.
Cornering Enhanced Traction Control System adjusts traction control based on lean angle. Cornering Drag-Torque Slip Control System performs a similar function for engine braking. These systems operate in conjunction with braking enhancements to maintain stability during cornering.
Fuel Capacity and Efficiency Metrics
The 2026 Harley-Davidson® Road Glide® Limited has a fuel capacity of 6 gallons. A low-fuel warning system activates when approximately 1 gallon remains. Fuel economy is estimated at 45 miles per gallon under combined city and highway conditions.
Fluid capacities include 5 quarts of oil with filter, 1 quart for the transmission, 1.1 quarts for the primary chain case, and 0.82 quarts of coolant. These specifications define maintenance requirements and operational limits.
