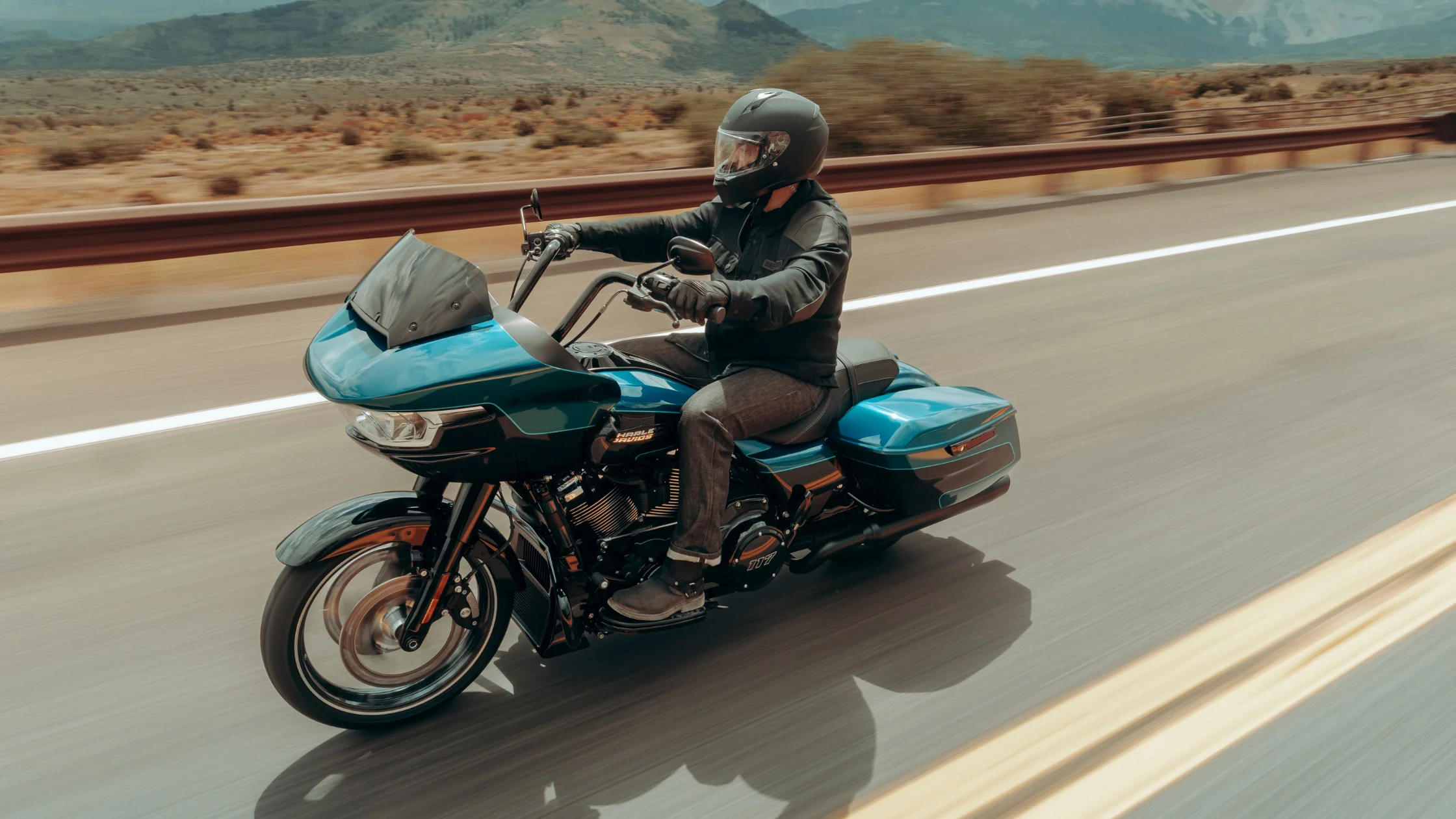

The 2026 Harley-Davidson® Road Glide® is engineered as a touring motorcycle with a defined focus on mechanical efficiency, structural rigidity, and integrated rider systems. Its configuration reflects a balance between long-distance capability and controlled handling through precise chassis geometry, calibrated suspension, and a high-displacement V-twin engine. The model incorporates a frame-mounted fairing design, contributing to aerodynamic stability and reduced rider fatigue during sustained highway operation. Every component, from drivetrain ratios to electronic systems, is configured to support consistent performance across varying riding conditions.
Engine Configuration and Output Characteristics
The Milwaukee-Eight® 117 engine defines the performance profile of the 2026 Harley-Davidson® Road Glide®. This V-twin engine features a displacement of 117 cubic inches or 1,923 cubic centimeters, achieved through a bore of 4.075 inches and a stroke of 4.5 inches. The configuration supports a compression ratio of 10.3 to 1, allowing for controlled combustion and consistent power delivery.
The engine produces 130 foot-pounds of torque at 3,250 rpm, supporting strong low-speed acceleration and reduced need for frequent gear changes. Peak output reaches 105 horsepower at 4,600 rpm, providing sustained performance during highway cruising. The torque delivery pattern supports smooth throttle response across the operating range.
Valve operation is managed through a pushrod-actuated overhead valve system with hydraulic, self-adjusting lifters. Each cylinder contains four valves, improving airflow efficiency and combustion stability. The lubrication system is pressurized and dry-sump based, ensuring consistent oil circulation during extended operation and varied riding angles.
Fuel delivery is controlled by Electronic Sequential Port Fuel Injection. This system regulates fuel flow based on engine demand, improving efficiency and maintaining stable performance under load. The air intake system utilizes a fiberglass, washable air cleaner, supporting long-term usability and consistent airflow.
The exhaust system follows a 2-1-2 configuration with tapered mufflers. This layout supports balanced exhaust flow while maintaining consistent back pressure, contributing to engine efficiency.
Transmission and Drivetrain Calibration
The drivetrain configuration is designed for durability and controlled power transfer. The primary drive operates through a chain system with a 34 to 46 ratio, while the final drive uses a belt system with a 32 to 68 ratio. This combination reduces maintenance requirements while maintaining efficient torque delivery.
The transmission is a 6-Speed Cruise Drive® unit, calibrated for both low-speed maneuvering and sustained highway riding. Gear ratios are spaced to provide gradual progression through the power band. First gear is set at 9.593, supporting initial acceleration. Second gear is 6.65, third gear is 4.938, and fourth gear is 4. Fifth gear is 3.407, and sixth gear is 2.875, reducing engine load at higher speeds.
The clutch system is mechanically actuated and consists of a 10-plate wet clutch with Assist and Slip functionality. The assist feature reduces clutch lever effort, improving rider control during frequent gear changes. The slip function reduces rear wheel instability during downshifting, supporting smoother deceleration.
Structural Frame and Chassis Engineering
The frame is constructed from mild steel and features a tubular design with a two-piece stamped and welded backbone. Cast and forged junctions reinforce key structural points, improving rigidity and load distribution. The frame incorporates twin down tubes and a bolt-on rear section with forged fender supports.
The swingarm is also fabricated from mild steel, using a two-piece drawn and welded construction with forged junctions. This design supports rear wheel alignment and contributes to overall chassis stability.
Steering geometry includes a rake angle of 26 degrees and a fork angle of 29.25 degrees. The trail measures 6.8 inches, contributing to predictable steering response and directional stability. The wheelbase measures 64 inches, supporting straight-line stability during highway riding.
Suspension Systems and Ride Control
The front suspension uses a 49 mm Dual Bending Valve fork. This design improves damping control by separating compression and rebound forces, supporting consistent front-end behavior across varying road conditions.
Rear suspension is managed through dual outboard emulsion shocks with preload adjustability. These shocks provide 3 inches of travel, allowing adjustment based on rider weight and load conditions. The configuration supports stability and ride comfort during long-distance travel.
Front suspension travel measures 4.6 inches, while rear travel measures 3 inches. This balance allows the motorcycle to absorb road irregularities while maintaining control and structural stability.
Dimensions, Capacity, and Weight Distribution
The 2026 Harley-Davidson® Road Glide® measures 94.9 inches in length, 37.2 inches in width, and 51.8 inches in height. These dimensions provide a stable platform suitable for extended touring use. The seat height is 26.6 inches when laden, supporting accessibility and a lower center of gravity.
Unladen seat height measures 28.3 inches. Ground clearance is 5.7 inches, allowing the motorcycle to navigate uneven surfaces without compromising structural components.
Fuel capacity is 6 gallons, supporting extended riding distances between refueling intervals. The fuel system includes a reserve capacity of 1 gallon, indicated by a warning light. Oil capacity with filter is 5 quarts, with additional fluid capacities allocated for the transmission, primary chain case, and coolant system.
The 2026 Harley-Davidson® Road Glide® weighs 802 pounds as shipped and 838 pounds in running order. Gross vehicle weight rating is 1,360 pounds, with front and rear axle ratings of 500 pounds and 927 pounds, respectively. Luggage capacity measures 2.42 cubic feet, supporting storage for extended trips.
Braking Hardware and Control Systems
The braking system uses dual front floating rotors measuring 12.6 inches in diameter. These rotors are paired with 4-piston fixed calipers mounted axially. The configuration supports consistent braking force and heat dissipation.
The rear brake uses a fixed rotor measuring 11.8 inches in diameter. The system is designed to provide balanced braking performance between front and rear components.
Anti-lock Braking System is standard, preventing wheel lock during sudden braking. Electronic Linked Braking distributes braking force between front and rear wheels, improving stability and reducing stopping distance under controlled conditions.
Electrical System and Lighting Components
The electrical system includes a sealed, maintenance-free 12-volt battery rated at 28 amp-hours with 405 cold cranking amps. Charging is handled through a three-phase 58-amp system, capable of generating up to 754 watts of power at 13 volts.
The starting system uses a 1.6 kW electric starter with solenoid shift engagement, providing reliable ignition under various conditions.
All lighting components use LED technology. This includes the headlamp, tail and stop lamp, front signal lights, and rear turn signals. LED lighting improves visibility and reduces power consumption compared to traditional systems.
Digital gauges are integrated into the display system, providing access to key riding information in a centralized interface.
Infotainment and Connectivity Systems
The 2026 Harley-Davidson® Road Glide® incorporates the Skyline™ OS infotainment platform. The system features a 12.3-inch full-color TFT display, designed for clear visibility and responsive interaction.
Audio output is delivered through two 5.25-inch fairing-mounted speakers, powered by a 50-watt-per-channel amplifier. The system supports AM and FM radio, along with USB-based media playback.
Bluetooth® connectivity enables hands-free phone operation and media streaming. Apple CarPlay® compatibility is supported through both wired and wireless connections, allowing integration with compatible smartphones.
The system includes an embedded navigation function with traffic and weather data access through Wi-Fi connectivity. A USB-C port located in the media storage compartment provides a 15-watt power output for device charging.
Vehicle information is displayed through an integrated screen, including air temperature, oil pressure, and engine idle temperature management system data.
Rider Safety Systems and Control Enhancements
The 2026 Harley-Davidson® Road Glide® includes multiple electronic systems designed to support rider control and stability. Traction Control System regulates rear wheel traction during acceleration. Drag-torque Slip Control System manages rear wheel behavior during deceleration and downshifting.
Vehicle Hold Control assists during stops by maintaining brake pressure, preventing unintended movement on inclines. The Tire Pressure Monitoring System provides continuous feedback on tire pressure levels.
Cornering-specific systems include the Cornering Enhanced Anti-lock Braking System, Cornering Enhanced Electronic Linked Braking, and Cornering Enhanced Traction Control. These systems adjust braking and traction responses based on lean angle, improving stability during cornering maneuvers.
Wheels, Tires, and Road Contact Performance
The 2026 Harley-Davidson® Road Glide® uses cast aluminum wheels with a front diameter of 19 inches and a rear diameter of 18 inches. The front wheel width is 3.5 inches, while the rear wheel width is 5 inches.
Tires are part of the Dunlop® Harley-Davidson® Series. The front tire specification is 130/60 B19, and the rear tire specification is 180/55 B18. These tires are designed to provide consistent grip and durability under touring conditions.
The combination of wheel size, tire profile, and suspension configuration supports stable road contact and predictable handling.
