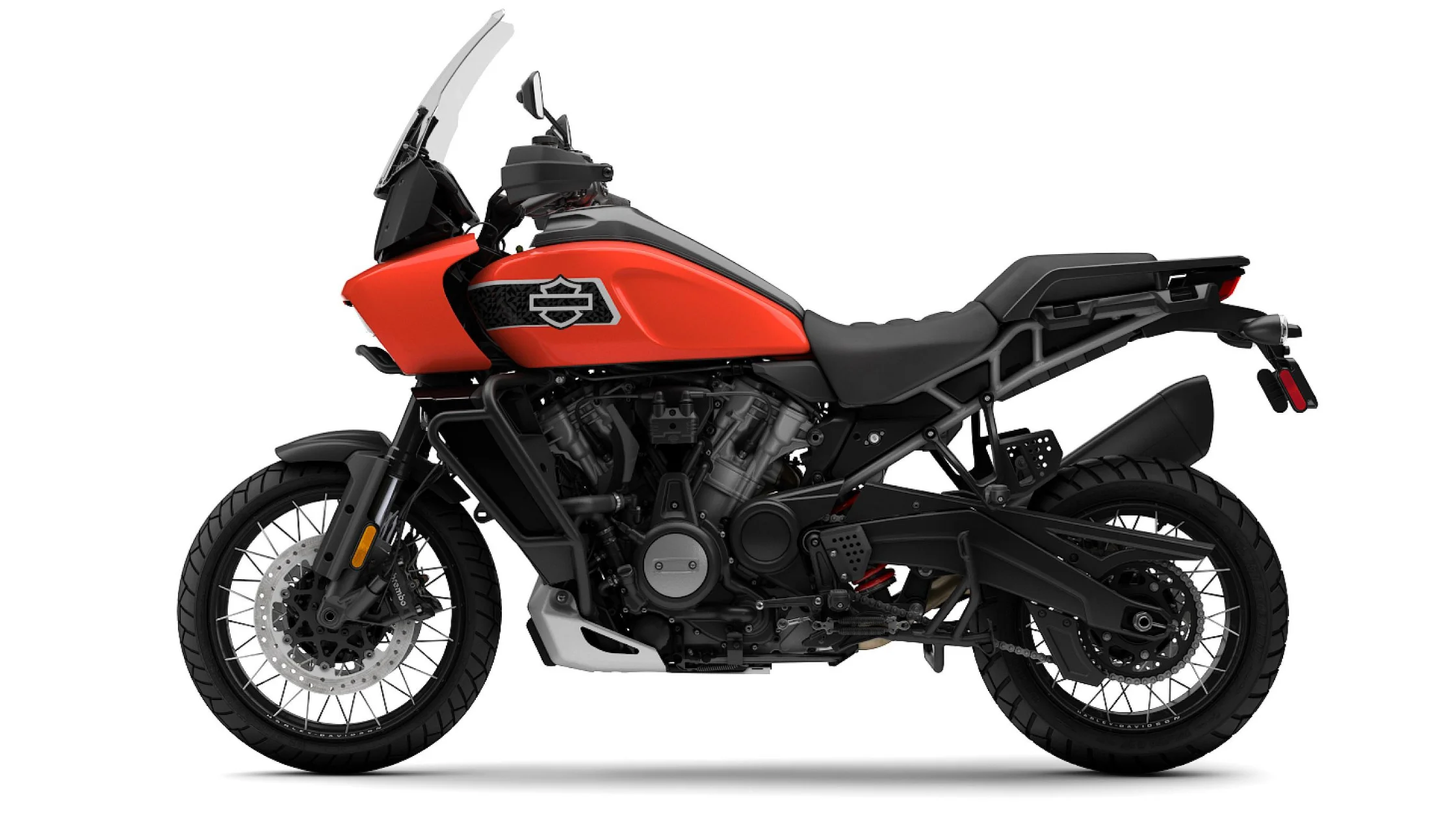

The 2026 Harley-Davidson® Pan America® 1250 Special is designed with a clear emphasis on measurable performance, structural efficiency, and integrated rider systems. This model combines a high-output liquid-cooled engine, electronically controlled suspension, and a reinforced chassis architecture to support a wide range of riding conditions. Its specifications define a motorcycle that prioritizes stability, adaptability, and consistent power delivery. Every component, from the engine configuration to the braking system, reflects a focus on technical function and operational reliability.
Engine Configuration and Output Characteristics
The 2026 Harley-Davidson® Pan America® 1250 Special is equipped with the Revolution® Max 1250 engine, a liquid-cooled V-twin that produces 150 horsepower at 8,750 rpm and 94 ft-lb of torque at 6,750 rpm. This output is supported by a displacement of 1,252 cc, achieved through a bore of 4.134 inches and a stroke of 2.846 inches. The engine operates with a compression ratio of 13.0:1, which contributes to efficient combustion and consistent power generation.
The valve system uses a chain-driven dual overhead camshaft configuration with hydraulic self-adjusting lifters. Variable valve timing is applied to both intake and exhaust valves, allowing the engine to adjust airflow characteristics across different engine speeds. Each cylinder contains four valves, supporting improved intake and exhaust flow efficiency.
Fuel delivery is managed through Electronic Sequential Port Fuel Injection. This system ensures accurate fuel metering under varying load conditions. The air intake system features a downdraft design with tuned velocity stacks and a washable filter element, which supports optimized airflow into the combustion chamber. Exhaust gases are routed through a 2-into-1-into-1 system that includes a catalyst integrated into the header assembly.
The lubrication system follows a semi-dry sump design, which maintains consistent oil distribution during changes in lean angle and terrain. Power is transferred through a 6-speed transmission with defined gear ratios. First gear is set at 13.11, while sixth gear is 4.436, allowing for controlled acceleration and efficient cruising at higher speeds.
Drivetrain and Mechanical Power Transfer
The drivetrain is configured with a gear-driven primary drive using a 49 to 89 ratio. Final power transfer is handled through a chain drive with a 19 to 48 ratio. This setup supports durability and direct power delivery, particularly in varied terrain conditions.
The clutch system is a mechanical assist and slip design with an 8-plate wet configuration. It is rated at 1090N, which supports smoother engagement and reduces lever effort during operation. The assist function improves clutch engagement under load, while the slip function helps manage rear wheel traction during aggressive downshifting.
Chassis Construction and Structural Layout
The frame uses a stressed-member design in which the engine contributes to the structural integrity of the motorcycle. The frame itself is constructed from high-strength low-alloy steel, incorporating stamped, cast, and forged sections that are joined through MIG welding. An aluminum forged mid-structure is integrated into the design to reduce overall weight while maintaining rigidity.
The swingarm is a one-piece cast aluminum component, which enhances strength and reduces flex during acceleration and braking. The steering geometry includes a rake angle of 25 degrees and a trail measurement of 4.3 inches. This configuration provides a balance between directional stability and steering response.
The wheelbase measures 62.4 inches, contributing to stability during high-speed operation. The overall length of the 2026 Harley-Davidson® Pan America® 1250 Special is 89.4 inches, with a width of 38.4 inches and a height of 59.4 inches. These dimensions support a stable platform while maintaining maneuverability.
Suspension Systems and Adaptive Control
The front suspension consists of a 47 mm inverted fork with electronically adjustable semi-active damping. This system continuously adjusts damping characteristics based on riding conditions and inputs. Aluminum fork triple clamps provide additional rigidity and alignment accuracy.
The rear suspension uses a linkage-mounted monoshock with automatic electronic preload control. It also features semi-active compression and rebound damping. This configuration allows the suspension to adapt to changes in load and terrain without manual adjustment.
An available Adaptive Ride Height system modifies the suspension height during operation. This system lowers the seat height when the motorcycle is stationary and raises it when in motion. With this feature, ground clearance can increase to 8.1 inches, while standard static ground clearance remains at 6.9 inches.
Suspension travel measures 7.5 inches at both the front and rear. This level of travel supports absorption of irregular surfaces while maintaining consistent tire contact.
Wheel and Tire Specifications
The 2026 Harley-Davidson® Pan America® 1250 Special uses Michelin® Scorcher Adventure radial tires. The front tire specification is 120 by 70 R19, while the rear tire is 170 by 60 R17. These tire dimensions support stability and traction across different surfaces.
The standard wheel configuration includes aluminum cast wheels with a satin black finish. Optional wheels are available in anodized aluminum tubeless laced construction, which is designed for increased durability in off-road conditions. The front wheel has a diameter of 19 inches and a width of 3 inches. The rear wheel measures 17 inches in diameter and 4.5 inches in width.
Braking System and Control Precision
The braking system is designed to provide consistent stopping performance under varying conditions. The front brakes use radially mounted monoblock 4-piston calipers paired with dual floating rotors measuring 12.6 inches in diameter. The rear brake consists of a single-piston floating caliper with an 11-inch rotor.
Anti-lock Braking System is included as standard. The system prevents wheel lock during braking and supports controlled deceleration on surfaces with reduced traction. The braking system is integrated with electronic rider aids that adjust performance based on lean angle and riding conditions.
Electronic Rider Assistance and Stability Systems
The 2026 Harley-Davidson® Pan America® 1250 Special incorporates multiple electronic systems that support traction, braking, and stability. These include traction control, drag-torque slip control, and vehicle hold control. Tire pressure monitoring provides continuous feedback on tire conditions, while wheel lift mitigation manages front wheel elevation during acceleration.
Cornering-enhanced systems adjust braking and traction functions when the motorcycle is leaned into a turn. These systems include cornering anti-lock braking, cornering electronic linked braking, and cornering traction control. Enhanced lift mitigation and cornering drag-torque slip control further support stability during dynamic riding conditions.
Electrical System and Lighting Components
The electrical system uses a sealed absorbed glass mat battery rated at 12 volts, 17.5 amp hours, and 310 cold cranking amps. Charging is managed through a three-phase 45 amp system capable of producing up to 585 watts at higher engine speeds.
Starting is handled by a 0.9 kW electric starter motor with direct drive engagement. Lighting components include a Daymaker® Adaptive LED headlamp with a 6-segment banking feature. This system adjusts light distribution based on lean angle to improve visibility.
Additional lighting includes LED tail and stop lamps with a signature lighting pattern, as well as LED turn signals at both the front and rear.
Display Interface and Connectivity Functions
The 2026 Harley-Davidson® Pan America® 1250 Special is equipped with a 6.8-inch color TFT display that supports touch functionality. This display provides access to speed, gear position, fuel level, odometer readings, and ambient temperature. It also displays alerts such as low temperature and side stand status.
The system supports Bluetooth® connectivity for phone pairing. Riders can access calls, media, and navigation functions through the Harley-Davidson® mobile application. The display also provides information such as engine temperature, battery voltage, and tire pressure.
A USB-C power outlet is included, delivering charging output at 5 volts and up to 2.4 amps. This allows for device charging and instrument updates.
Dimensions, Weight, and Capacity Measurements
The 2026 Harley-Davidson® Pan America® 1250 Special has a laden seat height range from 31.1 inches to 32 inches. When unladen, seat height ranges from 33.4 inches to 34.4 inches. With Adaptive Ride Height, these values are reduced for improved accessibility.
Fuel capacity is 5.6 gallons, with a reserve capacity of 1 gallon indicated by a warning light. Oil capacity is 4.75 quarts, and coolant capacity is 2.32 quarts.
The 2026 Harley-Davidson® Pan America® 1250 Special weighs 542 pounds as shipped and 578 pounds in running order. The gross vehicle weight rating is 1,003 pounds, with a front axle rating of 399 pounds and a rear axle rating of 665 pounds.
