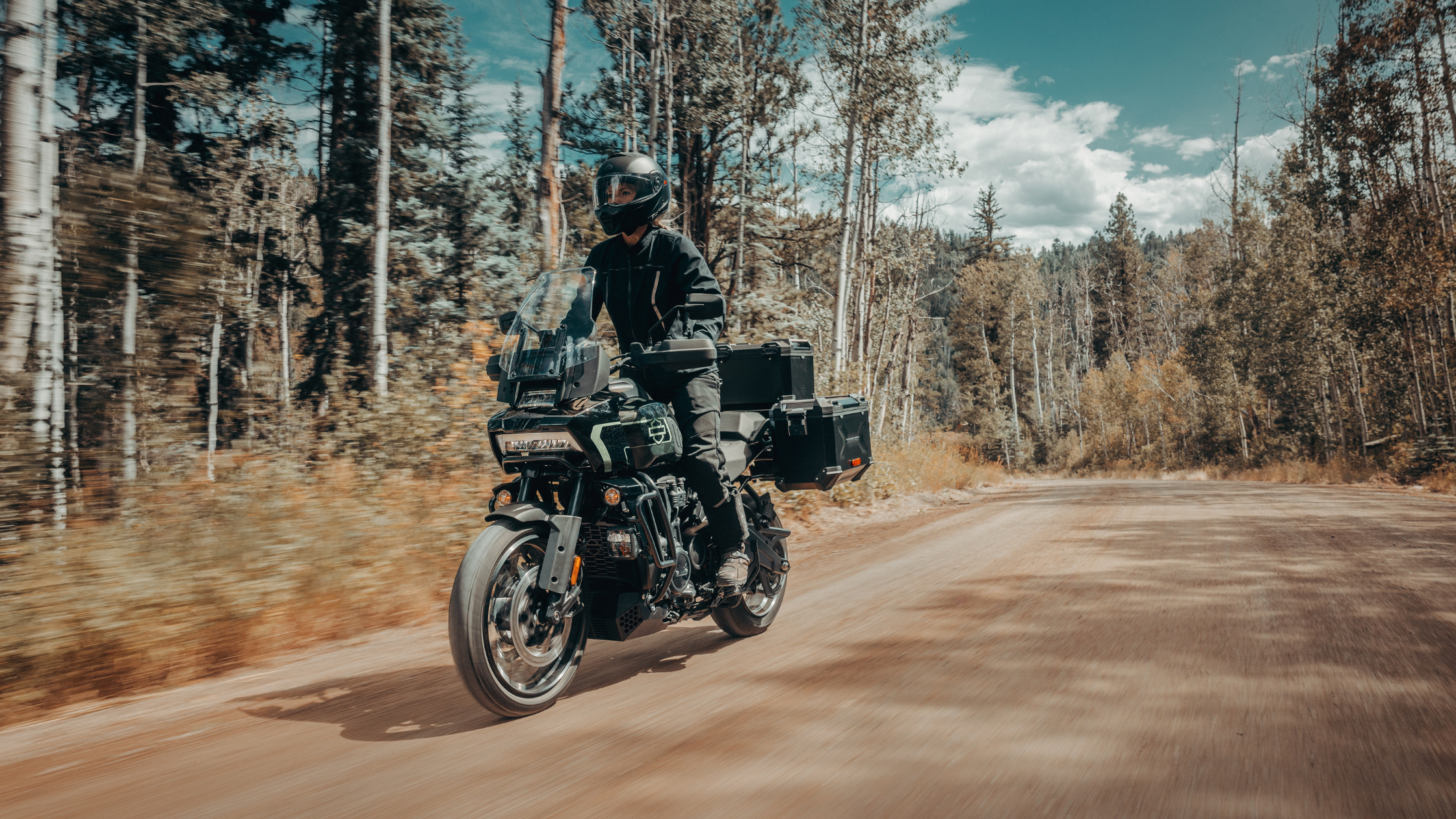

The 2026 Harley-Davidson® Pan America® 1250 Limited is designed as a high-capability adventure touring motorcycle with a focus on engine performance, chassis control, electronic rider systems, and long-distance functionality. The model combines a 1,252 cc Revolution® Max engine with electronically adjustable suspension, integrated rider safety technologies, adaptive lighting, and a touchscreen TFT display. Its specifications support highway touring, urban riding, and mixed-surface operation while maintaining consistent power delivery and handling precision. The motorcycle also incorporates advanced braking management systems, Bluetooth®-enabled connectivity, and a structural frame configuration engineered for durability and responsive steering behavior.
High-Output Revolution® Max Engine Configuration
The 2026 Harley-Davidson® Pan America® 1250 Limited uses the Revolution® Max 1250 powertrain. This liquid-cooled engine has a displacement of 1,252 cc, or 76.4 cubic inches, with a bore measuring 4.134 inches and a stroke measuring 2.846 inches. The engine operates with a 13.0:1 compression ratio and produces 150 horsepower at 8,750 rpm along with 94 ft-lb of torque at 6,750 rpm.
The engine architecture includes chain-driven dual overhead camshafts with hydraulic self-adjusting lifters. Variable valve timing is applied to both intake and exhaust valves to support controlled airflow across varying engine speeds. Four valves per cylinder contribute to combustion efficiency and power production.
Fuel delivery is managed through Electronic Sequential Port Fuel Injection. The intake system uses tuned velocity stacks with a downdraft intake arrangement and washable filter media. Exhaust routing follows a 2-into-1-into-1 configuration with a catalyst integrated into the header assembly. Lubrication is handled through a semi-dry sump system designed to maintain oil control during varied riding conditions and terrain transitions.
Transmission and Drivetrain Engineering
The motorcycle uses a 6-speed transmission paired with a mechanical assist-and-slip clutch system. The clutch assembly uses an 8-plate wet design with a 1090N specification. The assist function reduces clutch lever effort during operation, while the slip function helps regulate rear wheel movement during aggressive downshifts and rapid deceleration.
Primary drive operation uses a gear-driven system with a 49/89 ratio. Final drive transfer is handled through a chain drive using a 19/48 ratio. Gear ratios are calibrated to balance low-speed control with highway efficiency. First gear carries a 13.11 overall ratio, while sixth gear uses a 4.436 ratio to support stable cruising speeds and controlled engine operation during long-distance travel.
Frame Structure and Chassis Dynamics
The frame uses a stressed-member trellis design constructed from high-strength low-alloy steel. The chassis incorporates stamped, cast, and forged junctions with MIG-welded assembly points. An aluminum forged mid-structure is integrated into the frame design to support rigidity while controlling overall weight distribution.
The swingarm is constructed as a one-piece cast aluminum component. This structure supports rear suspension stability and contributes to predictable handling characteristics during cornering and uneven surface transitions.
Rake is set at 25 degrees with 4.3 inches of trail. Wheelbase measures 62.2 inches. These dimensions support directional stability while maintaining steering responsiveness suitable for adventure touring operation.
The motorcycle measures 92.3 inches in overall length, 43.1 inches in width, and 59.4 inches in height. Static ground clearance is rated at 7.1 inches. Dynamic ground clearance with optional suspension equipment measures 6.9 inches. The motorcycle weighs 626 pounds in shipped configuration and 661 pounds in running order.
Electronically Managed Suspension Systems
The front suspension system uses a 47 mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps are integrated into the assembly. The electronically managed system continuously adjusts damping behavior based on riding conditions and chassis movement.
Rear suspension uses a linkage-mounted monoshock with automatic electronic preload control and semi-active compression and rebound damping adjustment. This configuration supports load management during passenger riding, luggage transport, and extended touring use.
Optional Adaptive Ride Height technology is available for the 2026 Harley-Davidson® Pan America® 1250 Limited. This system modifies ride height during operation to improve rider accessibility during stops and low-speed maneuvering. Seat height with optional Adaptive Ride Height measures 30.4 inches in the low laden position and 31.4 inches in the high laden position. Unladen seat height measures 32.1 inches in the low setting and 33.1 inches in the high setting.
Front and rear suspension travel each measures 7.5 inches. This travel range supports operation across varying road surfaces while maintaining wheel control and chassis balance.
Adventure-Focused Wheel and Tire Setup
The 2026 Harley-Davidson® Pan America® 1250 Limited uses Michelin® Scorcher Adventure radial tires. Front tire specification measures 120/70R19 60V, while the rear tire measures 170/60R17 72V. The tire setup is designed to balance pavement stability with traction on mixed riding surfaces.
Standard wheels use satin black cast aluminum construction. The front wheel measures 19 inches in diameter with a width of 3 inches. The rear wheel measures 17 inches in diameter with a width of 4.5 inches. Optional anodized aluminum tubeless laced wheels are also available, depending on market configuration.
The motorcycle carries a lean angle rating of 42 degrees on both the left and right sides. This geometry supports cornering capability while maintaining chassis stability during directional transitions.
Brake Components and Rider Control Systems
Front braking uses dual floating tower-mounted rotors with radially mounted monoblock 4-piston calipers. Rotor diameter measures 12.6 inches with a thickness of 0.17 inches. Rear braking uses a solid, uniform expansion rotor measuring 11 inches in diameter with a floating single-piston caliper and a rotor thickness of 0.2 inches.
Anti-lock Braking System functionality is standard equipment. Electronic Linked Braking is also included to coordinate braking distribution between front and rear systems during deceleration.
The motorcycle integrates multiple electronic rider assistance systems focused on traction control and stability management. Traction Control System functionality is included as standard equipment. Drag-torque Slip Control System technology assists with rear wheel regulation during engine braking events. Vehicle Hold Control assists with stationary incline management. Tire Pressure Monitoring System functionality continuously monitors tire inflation levels during operation.
Wheel Lift Mitigation technology is also integrated into the motorcycle’s electronic rider systems package. This feature regulates front wheel lift during acceleration events to support controlled vehicle behavior.
Cornering-Enhanced Rider Assistance Technologies
The 2026 Harley-Davidson® Pan America® 1250 Limited includes cornering-enhanced safety systems calibrated to respond during leaned riding conditions. Cornering Enhanced Anti-lock Brake System adjusts braking intervention based on motorcycle lean angle and wheel behavior. Cornering Enhanced Electronic Linked Braking modifies brake force distribution during the cornering operation.
Cornering Enhanced Traction Control System functionality monitors wheel slip during leaned acceleration. Cornering Drag-Torque Slip Control System technology assists with stability management during downshifting while cornering. Enhanced Lift Mitigation functionality also remains active during cornering conditions.
Lighting Systems and Electrical Equipment
Lighting equipment on the 2026 Harley-Davidson® Pan America® 1250 Limited uses LED-based technology throughout the motorcycle. The headlamp system uses a Daymaker® Adaptive LED headlamp with a 6-segment LED banking lamp arrangement. This configuration adjusts lighting coverage during cornering movement to improve visibility in leaned riding situations.
Front and rear turn signals use LED Bullet Turn Signal units. The tail and stop lamp assembly uses all-LED construction with signature lighting integration. Auxiliary fog lamps and driving beams are also included.
Electrical power is supplied through a sealed maintenance-free AGM battery rated at 12 volts and 17.5 amp-hours with 310 cold cranking amps at 0 degrees Fahrenheit. Charging operation is managed through a three-phase 45-amp system capable of producing 390 watts at 13 volts and 1,300 rpm, with maximum output reaching 585 watts at 13 volts and 2,500 rpm.
The engine's starting operation uses a 0.9 kW electric direct-drive starter motor engagement system.
TFT Display and Connectivity Integration
The motorcycle uses a 6.8-inch color TFT touchscreen display as the primary rider interface. The display provides speedometer, tachometer, gear position, odometer, fuel level, trip information, range estimation, ambient temperature readings, and clock functionality.
Additional display alerts include side stand notification, tip-over indication, cruise operation status, and low-temperature warnings. Vehicle information monitoring includes tire pressure readings, battery voltage status, and engine temperature data.
Bluetooth® functionality supports phone and media connectivity. Riders can access phone calls, navigation functions through the H-D® App, and music controls through compatible connected devices. Hands-free mobile phone functionality is included as standard equipment.
The motorcycle also includes headset functionality for rider and passenger intercom support. USB-C charging capability is integrated into the motorcycle with 5V and 3A output support for charging and instrument updates. An additional USB-C power outlet provides 5V at 2.4 amps.
Fuel Capacity and Touring Capability
Fuel capacity for the 2026 Harley-Davidson® Pan America® 1250 Limited measures 5.6 gallons. Reserve fuel warning capacity measures 1 gallon. Estimated fuel economy is rated at 46 mpg. These specifications support long-distance riding capability with reduced fuel stop frequency during highway travel.
Luggage volume measures 4.24 cubic feet, supporting storage capacity for touring equipment and travel gear. Gross Vehicle Weight Rating is listed at 1,034 pounds. The Front Gross Axle Weight Rating measures 399 pounds, while the rear Gross Axle Weight Rating measures 665 pounds.
