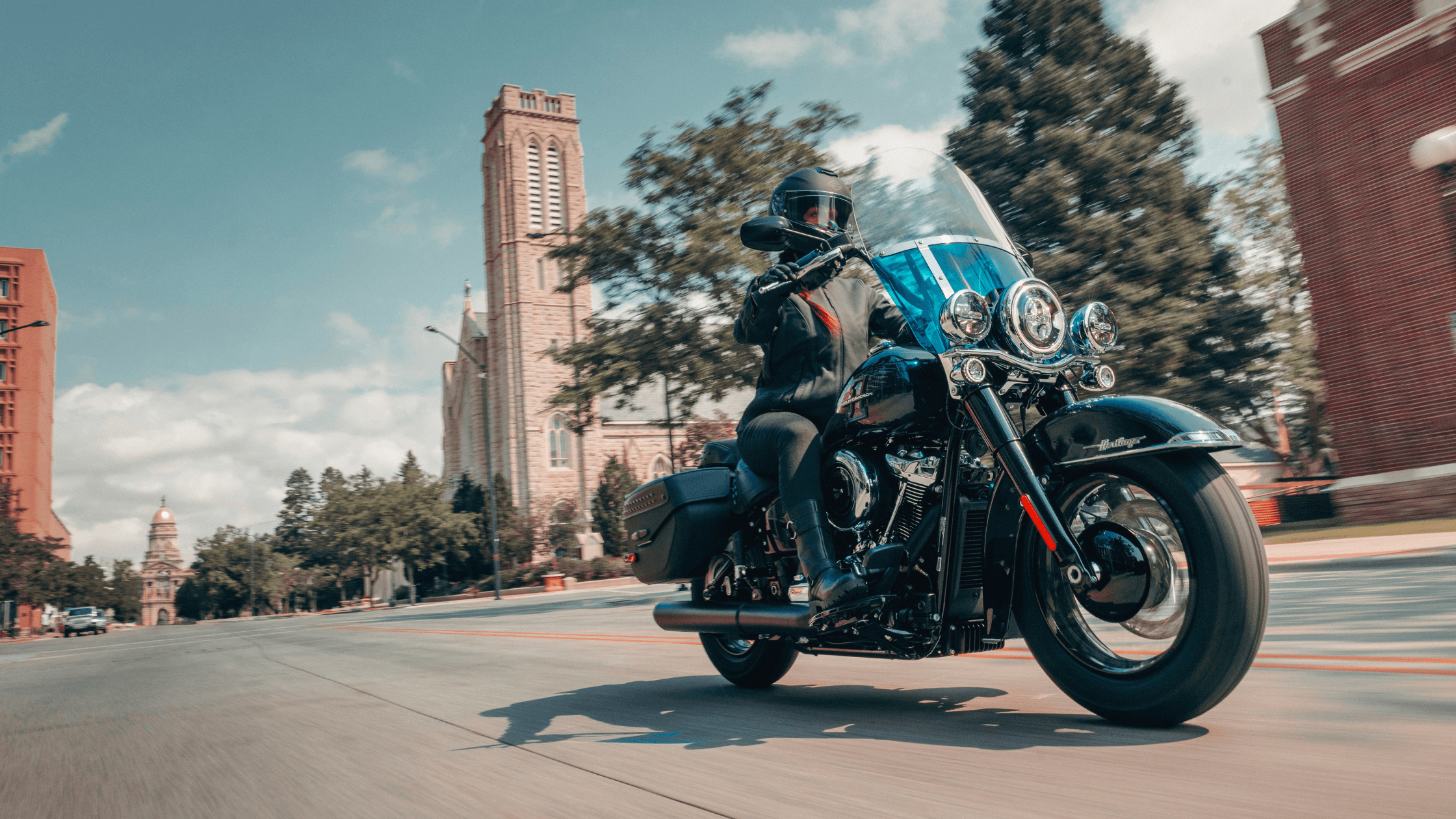

The 2026 Harley-Davidson® Heritage Classic is engineered as a full-size cruiser that combines traditional styling with updated mechanical systems and modern rider support technology. This model uses a Milwaukee-Eight® 117 Classic engine, a steel tubular frame, and a chassis designed for predictable handling and long-distance comfort. The motorcycle integrates electronic rider assistance systems while maintaining a straightforward mechanical layout focused on durability and usability. Its specifications indicate a machine built for stable highway operation, consistent torque delivery, and manageable low-speed control. From a dealership perspective, the 2026 Harley-Davidson® Heritage Classic serves riders looking for a technically balanced platform that prioritizes engineering function and rider control.
The motorcycle measures 95.1 inches in length, 36.6 inches in overall width, and 54.7 inches in height. A wheelbase of 64.2 inches contributes to straight-line stability, while a rake angle of 30 degrees and a trail of 5.5 inches support predictable steering response. The laden seat height of 26.3 inches positions the rider low for confidence during stops and slow maneuvers. A running weight of 719 pounds reflects the bike’s touring-oriented construction and structural stability. Ground clearance of 4.7 inches supports controlled cornering without compromising cruiser proportions.
Engine Architecture and Power Characteristics
The 2026 Harley-Davidson® Heritage Classic uses the Milwaukee-Eight® 117 Classic engine, designed to deliver strong low-end and mid-range output while maintaining mechanical simplicity. The engine features pushrod-operated overhead valves with hydraulic self-adjusting lifters and four valves per cylinder. This configuration reduces maintenance complexity and ensures consistent valve operation over extended mileage.
The engine displacement measures 117 cubic inches, or 1,923 cubic centimeters. Bore and stroke measurements of 4.075 inches and 4.5 inches contribute to the torque-focused nature of the motor. A compression ratio of 10.3:1 supports efficient combustion while maintaining smooth operation on recommended fuel grades. The fuel system uses Electronic Sequential Port Fuel Injection, improving throttle consistency and maintaining stable fueling across different riding conditions.
Power output is rated at 98 horsepower at 4,600 rpm, while engine torque reaches 120 foot-pounds at 2,500 rpm. These figures show a delivery curve aimed at accessible performance rather than high-rev power production. The lower rpm torque peak allows riders to accelerate smoothly without frequent downshifting. A 2-into-1 exhaust system with a catalyst in the header supports emissions compliance and controlled flow management. Lubrication is handled through a pressurized dry-sump system with an oil cooler, which assists temperature stability during long rides or sustained highway speeds.
Transmission and Drivetrain Engineering
Power transfer on the 2026 Harley-Davidson® Heritage Classic relies on a conventional yet efficient drivetrain design. The primary drive uses a chain with a 34/46 ratio. The final drive uses a belt system with a 32/66 ratio, selected for durability and reduced maintenance compared with chain-driven alternatives. The clutch is a mechanical 10-plate wet design featuring assist and conventional operation, which helps reduce lever effort and provides consistent engagement.
A 6-Speed Cruise Drive® transmission supports varied riding environments. Lower gears assist with acceleration and low-speed maneuvering, while higher gears reduce engine rpm during highway travel. The overall gear ratios range from 9.311 in first gear down to 2.79 in sixth gear. This spread allows smooth progression through acceleration while supporting relaxed cruising at steady speeds. The drivetrain configuration emphasizes stability and predictable power transfer rather than aggressive response.
Frame Construction and Suspension System
The chassis is built around a mild steel tubular frame with a rectangular section backbone and forged, stamped, and cast junctions. MIG welding techniques reinforce structural consistency, while aluminum-forged fender supports help manage weight distribution. The swingarm uses tubular steel sections with stamped cross-members and forged axle junctions, contributing to strength during acceleration and braking loads.
The front suspension employs a dual-bending valve 49 mm telescopic fork with aluminum triple clamps and dual-rate springs. This setup aims to absorb irregular road surfaces while preserving steering accuracy. The rear suspension uses a hidden coil-over monoshock with a free piston design and a 56 mm stroke. Hydraulic preload adjustment allows riders to compensate for luggage or passenger weight while maintaining balanced geometry.
Suspension travel measures 5.1 inches at the front and 4.4 inches at the rear. These figures provide adequate damping for a cruiser designed for touring and daily riding. The hidden rear shock layout preserves traditional visual styling while delivering modern suspension function.
Wheels, Tires, and Braking Performance
The 2026 Harley-Davidson® Heritage Classic uses black 9-spoke cast aluminum wheels in both front and rear positions. Wheel diameter measures 16 inches front and rear, with a width of 3 inches. Tire specifications include a 130/90B16 front tire and a 150/80B16 rear tire. The selected tire profile contributes to straight-line stability and predictable cornering behavior.
The braking system includes a 4-piston fixed front caliper and a 2-piston floating rear caliper. Front brake rotor diameter is 11.8 inches with a thickness of 0.2 inches. Rear rotor diameter measures 11.5 inches with a thickness of 0.23 inches. The motorcycle uses solid, uniform expansion rotors designed to manage heat distribution. Anti-lock braking system functionality is standard, enhancing stability during controlled braking on variable surfaces. The braking configuration focuses on steady, progressive stopping performance suited for the weight and geometry of the motorcycle.
Rider Assistance and Safety Integration
The 2026 Harley-Davidson® Heritage Classic includes electronic rider safety features designed to support traction and braking control. Standard Anti-lock Braking System operation helps prevent wheel lock under heavy braking. The Traction Control System monitors rear wheel slip and adjusts output to maintain controlled acceleration. Drag-torque Slip Control limits rear-wheel instability during aggressive downshifts, supporting smooth deceleration.
The motorcycle also incorporates Tire Pressure Monitoring System functionality, allowing riders to monitor inflation levels through the instrument display. Cornering-enhanced rider safety systems include Cornering Enhanced ABS, Cornering Enhanced Traction Control, and Cornering Drag-torque Slip Control. These systems use lean-angle data to adjust braking and torque management during turns. The result is improved stability during cornering transitions and controlled acceleration while leaned over.
Lean angles are rated at 27.4 degrees on both the left and right sides, reflecting the balance between cruiser ergonomics and usable cornering clearance.
Electrical System and Lighting Technology
The electrical system uses a sealed, maintenance-free absorbed glass mat battery rated at 12 volts, 17.5 amp-hours, and 310 cold cranking amps. Charging is provided by a three-phase 48-amp system that generates up to 624 watts at higher rpm levels. The starter motor uses a 1.6 kW electric system with solenoid shift engagement for consistent ignition performance.
Lighting systems use all-LED technology. The headlamp integrates low beam, high beam, and signature position lighting. Turn signals use LED bullet-style units, and the tail and stop lighting employ LED construction for visibility and longevity. LED fog lamps provide auxiliary illumination, improving visibility under reduced lighting conditions.
A USB Type-C power outlet delivers 5V at 2.4 amps, allowing riders to power or charge compatible devices. This addition supports modern accessory use without requiring complex infotainment systems.
Instrumentation and Rider Information Display
Instrumentation centers on a 5-inch analog speedometer paired with an integrated digital display. This display presents operational information including gear position, odometer, fuel level, ride modes, traction control status, ABS indication, tire pressure monitoring, cruise control, tachometer data, trip information, and estimated range. The layout emphasizes readability and quick reference rather than multimedia interaction.
The motorcycle does not include a dedicated infotainment system, navigation screen, or integrated audio system. This simplified configuration reduces distractions while retaining essential riding information. The interface design supports riders who prioritize mechanical engagement and functional data visibility.
Fuel Capacity and Efficiency Specifications
Fuel capacity is rated at 5 gallons, with a reserve warning indicator triggered when approximately 1 gallon remains. Estimated fuel economy is listed at 47 miles per gallon under city and highway testing conditions. These values provide a practical balance between touring range and engine performance. Oil capacity with filter measures 5 quarts, while transmission and primary chain case capacities are 1 quart and 1.25 quarts, respectively. These service volumes reflect a straightforward maintenance structure typical of large-displacement cruisers.
Visit Harley-Davidson® of Wesley Chapel for a Test Ride
Riders interested in evaluating the technical performance of the 2026 Harley-Davidson® Heritage Classic can examine how the Milwaukee-Eight® 117 engine responds under steady acceleration and observe how the cornering safety systems operate during controlled turns. At Harley-Davidson® of Wesley Chapel, close to Lutz, FL, our team encourages scheduling a test ride to experience the balance between torque delivery, chassis stability, and electronic rider support systems. A test ride allows you to assess the suspension performance, braking feel, and instrumentation clarity in normal riding conditions. It also provides an opportunity to evaluate seating position, low-speed handling, and throttle response from a technical perspective. Contact our dealership to arrange a ride and examine how the specifications of the 2026 Harley-Davidson® Heritage Classic translate into practical on-road operation.
