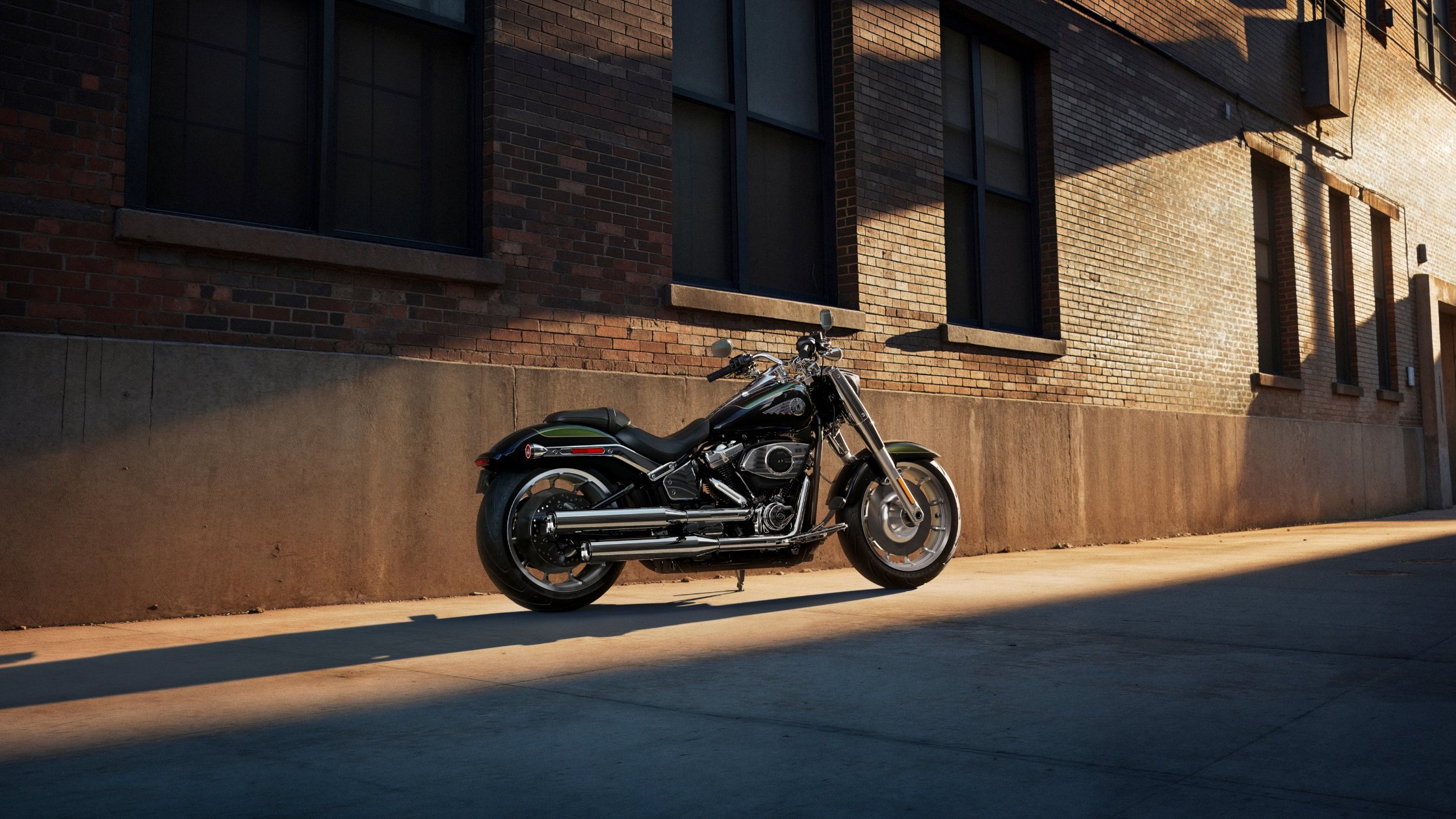

The 2026 Harley-Davidson® Fat Boy® continues the Softail® platform with a combination of large-displacement V-twin performance, wide-profile chassis geometry, and integrated rider-assistance technology. This model uses the Milwaukee-Eight® 117 Custom engine paired with a 6-Speed Cruise Drive® transmission and a belt final drive system. The motorcycle features a low seat height, broad tire dimensions, cast aluminum Lakester wheels, and a steel tubular frame structure designed for cruiser stability and long-distance operation.
The 2026 Harley-Davidson® Fat Boy® measures 93.1 inches in overall length, 40 inches in width, and 44.1 inches in height. The wheelbase extends to 65 inches, contributing to straight-line control and low-speed balance. Laden seat height measures 25.9 inches, while unladen seat height measures 26.6 inches. Static ground clearance is rated at 4.9 inches. Steering geometry includes a 30-degree rake, a 32-degree fork angle, and 4.1 inches of trail. These dimensions create the long and low stance associated with the 2026 Harley-Davidson® Fat Boy® platform while maintaining controlled steering response.
Milwaukee-Eight® 117 Custom Engine Configuration
The 2026 Harley-Davidson® Fat Boy® uses the Milwaukee-Eight® 117 Custom powertrain with a displacement of 117 cubic inches, or 1,923 cc. Engine construction includes pushrod-operated overhead valves with hydraulic self-adjusting lifters and four valves per cylinder. Bore measures 4.075 inches, while stroke measures 4.5 inches. The compression ratio is listed at 10.3:1.
Fuel delivery is managed through Electronic Sequential Port Fuel Injection. The engine uses a Helix-style air cleaner and a 2-into-2 staggered exhaust system with the catalyst positioned in the muffler assembly. Lubrication is handled through a pressurized dry-sump system equipped with an oil cooler.
The engine produces 126 ft-lb of torque at 3,000 rpm and generates 103 horsepower at 4,800 rpm. These figures support low-rpm acceleration and sustained highway cruising. Harley-Davidson® specifies J1349 testing methodology for torque measurement. The large-displacement V-twin configuration also contributes to low-end pulling capability during acceleration from stopped or low-speed conditions.
Six-Speed Transmission and Driveline Structure
The drivetrain configuration combines a chain-driven primary system with a belt-driven final drive. Primary drive ratio is listed at 34/46, while the final drive ratio is 32/66. The motorcycle uses a mechanical 10-plate wet clutch with assist and conventional operation.
Transmission duties are handled by the 6-Speed Cruise Drive® gearbox. Gear ratios include 9.311 in first gear, 6.454 in second gear, 4.793 in third gear, 3.882 in fourth gear, 3.307 in fifth gear, and 2.79 in sixth gear. The ratio spread allows lower gearing during initial acceleration and taller gearing for highway operation at reduced engine speed.
The combination of a chain primary drive and a belt final drive supports durability and reduced drivetrain maintenance. Belt drive operation also contributes to smoother power transfer compared to traditional chain-only systems.
Steel Chassis Construction and Suspension Design
The chassis uses a mild-steel tubular frame with a rectangular-section backbone. Harley-Davidson® incorporates stamped, cast, and forged junctions connected through MIG welding techniques. Aluminum forged fender supports are integrated into the structure.
The swingarm uses mild-steel tubular sections with a stamped cross-member and forged axle junctions. The assembly also includes MIG welding and a removable belt spacer.
Front suspension consists of a 49 mm telescopic fork with dual-bending valve technology. The fork includes aluminum triple clamps, dual-rate springs, and external “beer can” covers. Front suspension travel measures 5.1 inches.
Rear suspension uses a hidden free-piston coil-over monoshock with a 43 mm stroke and hydraulic preload adjustment. Rear suspension travel measures 3.4 inches. The hidden rear shock configuration maintains the rigid-style Softail® appearance while retaining rear suspension functionality.
The suspension geometry supports controlled weight transfer and straight-line stability. The long wheelbase and low center of gravity also influence handling characteristics during low-speed maneuvering and highway riding.
Lakester Wheels and Michelin® Tire Specifications
The 2026 Harley-Davidson® Fat Boy® uses machined Lakester cast aluminum wheels at both ends. The front wheel diameter measures 18 inches with a width of 4.5 inches. Rear wheel diameter also measures 18 inches, while rear width extends to 8 inches.
The motorcycle uses Michelin® Scorcher 11 tires for both front and rear applications. Front tire specification is 160/60R18 70V BW. Rear tire specification is 240/40R18 79V BW. The wide rear tire remains one of the defining physical characteristics of the 2026 Harley-Davidson® Fat Boy® platform.
Braking Components and Lean-Angle Capability
The braking system includes a 4-piston fixed front caliper and a 2-piston floating rear caliper. Front and rear braking components use silver Split 7-spoke floating rotors.
The front brake rotor diameter measures 11.8 inches with a thickness of 0.2 inches. Rear brake rotor diameter measures 11.5 inches with a thickness of 0.23 inches. The motorcycle does not use a dual-front brake arrangement.
An anti-lock braking system is included as standard equipment. Harley-Davidson® also integrates Cornering Enhanced Anti-lock Brake System functionality. These systems assist with maintaining wheel control during braking events.
Lean angle is rated at 25.6 degrees on both the right and left sides. Harley-Davidson® specifies J1168 testing methodology for lean-angle measurement.
Rider Safety Systems and Electronic Control Features
The 2026 Harley-Davidson® Fat Boy® includes multiple electronic rider-assistance systems designed to support traction management and braking control. Standard systems include Anti-lock Braking System, Traction Control System, Drag-torque Slip Control System, and Tire Pressure Monitoring System.
Cornering-focused systems are also integrated into the platform. These include Cornering Enhanced Anti-lock Brake System, Cornering Enhanced Traction Control System, and Cornering Drag-Torque Slip Control System.
The traction control system monitors wheel speed differences to assist with rear-wheel traction management during acceleration. Drag-torque Slip Control System functionality helps regulate rear-wheel behavior during aggressive downshifting or deceleration events. The Tire Pressure Monitoring System provides continuous tire-pressure status through the gauge display.
Electronic Linked Braking, Vehicle Hold Control, Enhanced Lift Mitigation, and Wheel Lift Mitigation are not included on this model.
Electrical Hardware and Instrumentation Layout
The electrical system uses a sealed absorbed glass mat battery rated at 12 volts and 17.5 Ah, with 310 cold cranking amps at 0°F. Charging is handled through a three-phase 48-amp system. Harley-Davidson® lists charging output at 364 watts at 13 volts and 900 rpm, with maximum output reaching 624 watts at 13 volts and 2,000 rpm.
Starting duties are handled by a 1.6 kW electric starter using solenoid shift starter motor engagement.
Lighting equipment includes an all-LED headlamp assembly with low beam, high beam, and signature position lighting. The rear lighting system uses bullet-style LED stop, tail, and turn signal units. Front and rear turn indicators also use LED bullet-style lighting.
Instrumentation is centered around a 5-inch analog speedometer with integrated digital information display. The display provides gear position, odometer readings, fuel level data, ride modes, heated gear status, traction control indication, ABS status, Tire Pressure Monitoring System information, cruise control indication, clock, trip information, fuel range, and tachometer data.
The motorcycle also includes a USB-C power outlet with 5V and 2.4-amp output capability.
Fuel Capacity, Fluid Volumes, and Weight Measurements
Fuel capacity is rated at 5 gallons, with a 1-gallon reserve warning-light level. The estimated fuel economy is listed at 47 mpg.
Oil capacity with filter measures 5 quarts. Transmission capacity is 1 quart, while primary chain case capacity is 1.43 quarts.
The 2026 Harley-Davidson® Fat Boy® has an as-shipped weight of 668 pounds and a running-order weight of 694 pounds. Gross Vehicle Weight Rating is 1,175 pounds. The Front Gross Axle Weight Rating measures 450 pounds, while the rear Gross Axle Weight Rating is rated at 760 pounds.
The motorcycle does not include luggage-capacity volume specifications, auxiliary lamps, reverse functionality, integrated infotainment hardware, navigation systems, Bluetooth® connectivity, or speaker systems.
Functional Cockpit and Minimal Electronics Integration
The 2026 Harley-Davidson® Fat Boy® maintains a simplified rider interface focused on operational information rather than multimedia integration. Harley-Davidson® does not equip the motorcycle with a touchscreen infotainment system, speaker assemblies, headset integration, navigation systems, phone connectivity, Bluetooth® capability, AM or FM radio, weather-band functions, or intercom systems.
This configuration keeps the rider's focus directed toward mechanical operation, instrument visibility, and riding controls. The analog-digital gauge arrangement centralizes operational information in a compact layout without additional entertainment or communication interfaces.
