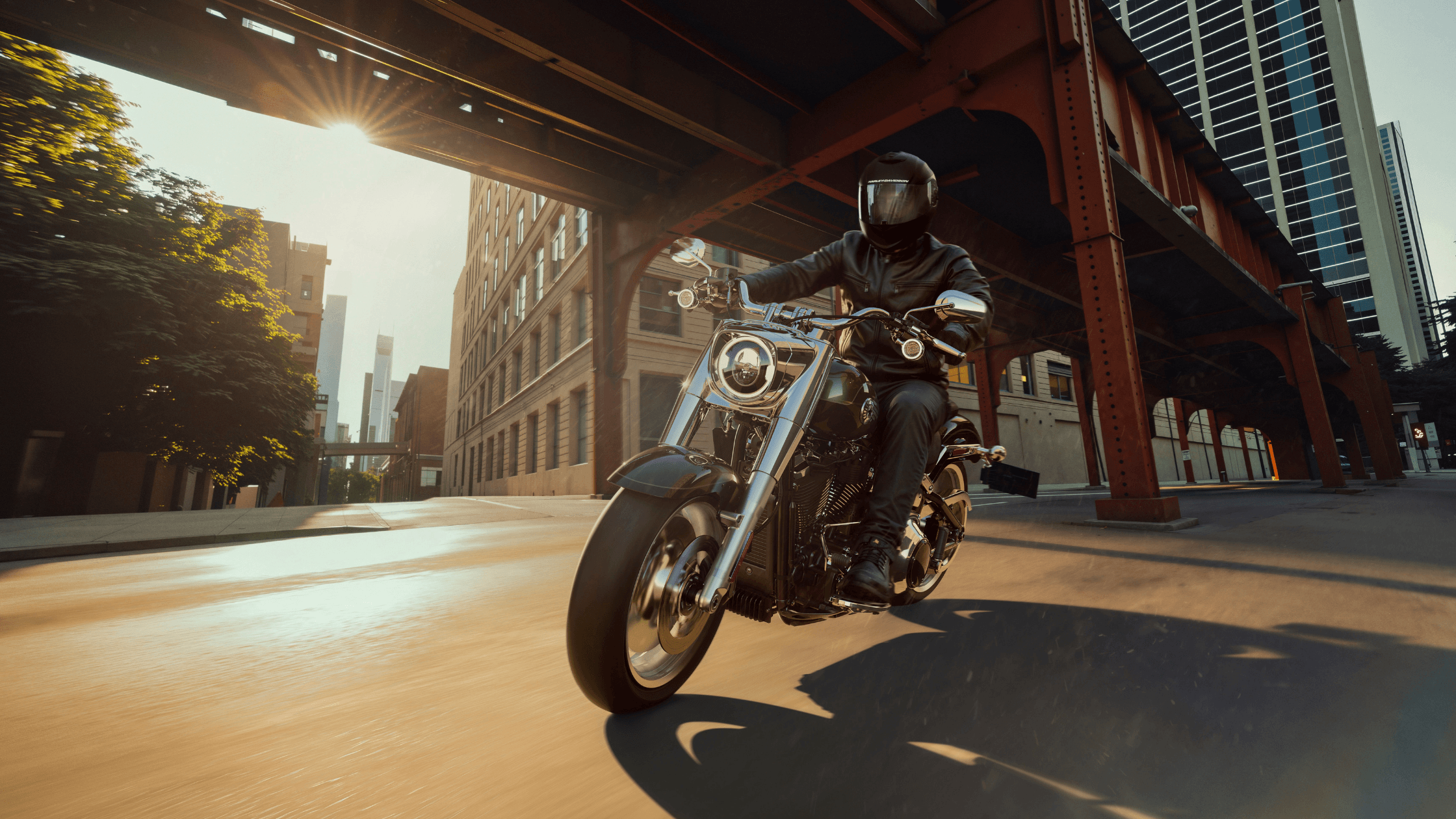

The 2026 Harley-Davidson® Fat Boy® is engineered as a heavyweight cruiser designed around measurable performance, defined geometry, and integrated rider-support technology. The motorcycle combines a large-displacement V-twin engine with a stable chassis layout and a simplified technology package focused on essential riding data and control systems. Its technical profile emphasizes torque output, structural rigidity, and consistent handling characteristics. The model uses a low seat height, wide rear tire, and long wheelbase configuration to create stable road manners during acceleration and cruising. Each component reflects deliberate mechanical design choices aimed at balancing power delivery, rider control, and long-distance usability. The following sections present the model strictly through its specifications and technical features, organized for clarity and precision.
Engine Construction and Performance Output
The 2026 Harley-Davidson® Fat Boy® uses the Milwaukee-Eight® 117 Custom engine, configured as a large-displacement V-twin with a total displacement of 117 cubic inches or 1,923 cc. The engine utilizes pushrod-operated overhead valves with hydraulic self-adjusting lifters and four valves per cylinder. This configuration reduces maintenance requirements related to valve adjustments while sustaining airflow efficiency throughout the rev range. Bore and stroke measurements are 4.075 inches and 4.5 inches, respectively, producing a long-stroke design that supports strong torque production at lower engine speeds.
The compression ratio is rated at 10.3:1, designed to provide efficient combustion and stable performance under normal riding conditions. Fuel delivery comes from an Electronic Sequential Port Fuel Injection system, which meters fuel precisely based on throttle input and operating conditions. Air intake is managed through a Helix-style air cleaner, supporting consistent airflow and filtration. Exhaust gases exit through a 2-into-2 staggered exhaust system with a catalyst located in the muffler, balancing performance output and emissions control.
Torque output is certified at 126 ft-lb at 3,000 rpm, which defines the riding character of the motorcycle. Peak horsepower measures 103 HP at 4,800 rpm. The torque-focused tuning supports smooth acceleration from low engine speeds and reduces the need for frequent gear changes during cruising. Lubrication is managed through a pressurized dry-sump system with an oil cooler, helping maintain stable operating temperatures during prolonged operation. These mechanical attributes reflect a design strategy centered on broad torque availability and consistent thermal control.
Drivetrain and Transmission Dynamics
Power transfer begins with a chain-driven primary system using a 34/46 ratio. Final drive operation uses a belt configuration with a 32/66 ratio. The belt drive contributes to reduced maintenance intervals and smoother engagement compared with fully chain-based systems. Clutch operation uses a mechanical assist-and-conventional 10-plate wet clutch design, balancing lever effort and positive engagement for predictable shifting behavior.
The motorcycle employs a six-speed Cruise Drive® transmission. Gear ratios are engineered to provide strong initial acceleration while maintaining relaxed engine speeds at highway velocity. First gear carries an overall ratio of 9.311, supporting low-speed control and rapid starts. Ratios progressively decrease through the range, with sixth gear at 2.79 for reduced engine rpm during sustained cruising. This gearing structure supports efficiency and minimizes vibration at higher speeds. The transmission layout allows smooth transitions between city riding and open-road operation without complex rider input.
Chassis Architecture and Structural Design
The frame uses mild steel tubular construction with a rectangular backbone section. The design integrates stamped, cast, and forged junctions connected through MIG welding processes. Aluminum forged fender supports reduce weight in non-load-critical areas while maintaining structural strength. The frame geometry contributes to the motorcycle’s stable handling profile and supports the overall weight distribution.
The swingarm consists of mild steel tubular sections combined with stamped cross-members and forged axle junctions. The removable belt spacer facilitates maintenance access. Chassis design parameters emphasize stability under acceleration and predictable cornering behavior. Steering geometry includes a 30-degree rake and a 4.1-inch trail, values that support steady steering response and controlled directional changes.
The wheelbase measures 65 inches, reinforcing straight-line stability. Overall length is 93.1 inches, with a width of 40 inches and an overall height of 44.1 inches. These proportions create a broad footprint that contributes to planted road contact and balanced mass distribution. Ground clearance is measured at 4.9 inches, supporting moderate lean angles while preserving cruiser ergonomics.
Suspension System and Ride Control
Front suspension uses a dual-bending valve 49 mm telescopic fork equipped with aluminum fork triple clamps and dual-rate springs. The fork design manages compression and rebound forces to maintain front-wheel stability during braking and uneven pavement transitions. Rear suspension uses a hidden coil-over monoshock featuring a free-piston design, a 43 mm stroke, and hydraulic preload adjustment. This arrangement allows riders to modify preload according to load conditions while preserving consistent rear-wheel contact.
Suspension travel measures 5.1 inches at the front and 3.4 inches at the rear. These values align with cruiser-focused ride characteristics that prioritize stability and controlled movement rather than aggressive compression travel. The suspension configuration contributes to predictable chassis response and reduced oscillation during acceleration or deceleration.
Wheel, Tire, and Brake Engineering
The 2026 Harley-Davidson® Fat Boy® uses machined Lakester cast aluminum wheels at both front and rear positions. Wheel diameter measures 18 inches on both ends, with a width of 4.5 inches in the front and 8 inches in the rear. Tire selection includes Michelin® Scorcher 11 models specifically sized for the motorcycle’s weight and torque output. The front tire specification is 160/60R18, while the rear uses a wider 240/40R18 configuration to increase contact area and support traction.
Braking hardware consists of a four-piston fixed front caliper and a two-piston floating rear caliper. Rotor design uses silver split 7-spoke floating rotors. Front rotor diameter measures 11.8 inches with a thickness of 0.2 inches. The rear rotor measures 11.5 inches with a thickness of 0.23 inches. Anti-lock Braking System functionality is standard, supporting controlled braking by preventing wheel lock during heavy deceleration. This braking system configuration focuses on consistent stopping performance and rider stability under varying surface conditions.
Dimensions, Mass, and Ergonomic Layout
Seat height is measured at 25.9 inches in laden condition and 26.6 inches unladen, contributing to accessible mounting and stable stops. The low seating position aligns the rider with the motorcycle’s center of gravity, improving balance at low speeds. Static ground clearance and long wheelbase geometry combine to create stable handling during straight-line travel.
Weight measurements include 668 pounds as shipped and 694 pounds in running order. Gross Vehicle Weight Rating is specified at 1,175 pounds, with front and rear axle ratings of 450 and 760 pounds, respectively. These values indicate structural capacity while maintaining predictable handling dynamics. The design prioritizes stability and control rather than minimizing mass.
Fuel capacity measures 5 gallons with a reserve warning at approximately 1 gallon. Estimated fuel economy is listed at 47 miles per gallon, supporting extended riding intervals between refueling stops. Oil capacity with filter is 5 quarts, while transmission and primary chain case capacities are 1 quart and 1.43 quarts, respectively. These mechanical capacities reflect standard service requirements and operational efficiency.
Instrumentation, Electrical Equipment, and Rider Interface
The rider interface centers on a 5-inch analog speedometer combined with digital readouts. The display provides gear indication, odometer data, fuel level, ride modes, traction control status, ABS indication, tire pressure monitoring, cruise control information, clock, trip metrics, range estimation, and tachometer data. This configuration supplies operational information without additional multimedia systems.
Electrical power is supplied by a sealed AGM battery rated at 12V, 17.5Ah, with 310 cold-cranking amps at 0°F. Charging is handled by a three-phase 48-amp system providing up to 624 watts at higher engine speeds. Starting operation uses a 1.6 kW electric starter with solenoid shift engagement. Lighting components are fully LED, including the headlamp, front signals, and rear bullet-style stop and turn signals. A USB C-Type outlet supplies 5V at 2.4 amps for device charging. Infotainment components such as audio systems and navigation interfaces are intentionally omitted, focusing the interface on functional riding data.
Rider Safety Systems and Control Technologies
Safety features include Anti-lock Braking System integration, Traction Control System, Drag-torque Slip Control System, and Tire Pressure Monitoring System. These systems operate continuously to assist the rider in maintaining stability during acceleration, braking, and downshifting. Cornering-enhanced safety technologies are included, such as Cornering Enhanced ABS, Cornering Enhanced Traction Control, and Cornering Drag-torque Slip Control. These features adjust system responses based on motorcycle lean angle to support control during curved riding conditions.
Lean angles are measured at 25.6 degrees on both the left and right sides. The inclusion of cornering-based safety controls complements these mechanical limits by supporting tire grip management during angled travel. The design approach integrates mechanical stability with electronic monitoring to reduce the risk of unintended wheel slip or braking instability.
